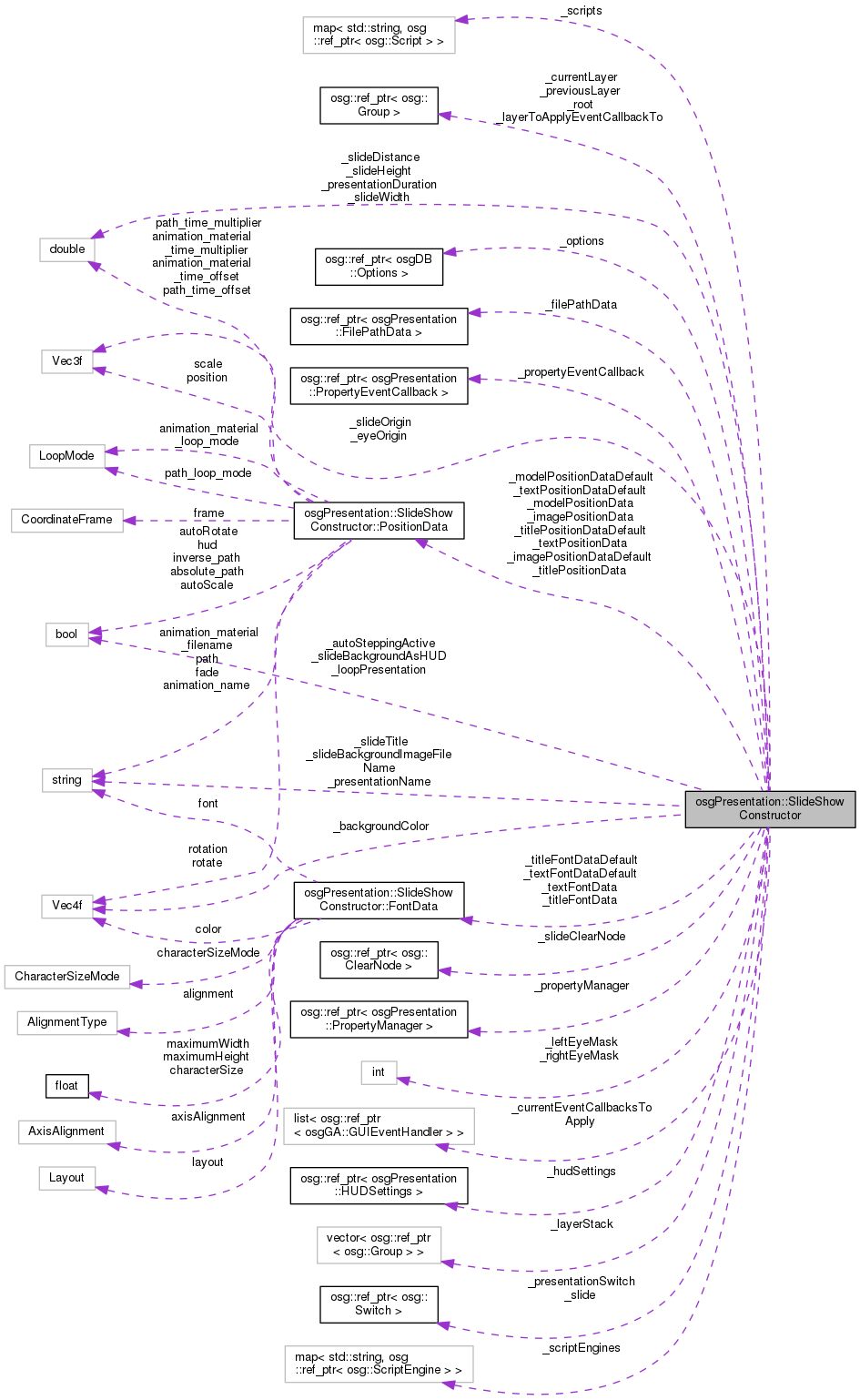

Collaboration diagram for osgPresentation::SlideShowConstructor:

[legend]

Classes
struct	FontData

struct	ImageData

struct	ModelData

struct	PositionData

struct	ScriptData

struct	VolumeData

Public Types
enum	CoordinateFrame { SLIDE, MODEL }

enum	ScriptCallbackType { UPDATE_SCRIPT, EVENT_SCRIPT }

enum	PresentationContext { CURRENT_PRESENTATION, CURRENT_SLIDE, CURRENT_LAYER }

typedef std::pair< ScriptCallbackType, std::string >	ScriptPair

Public Member Functions
LayerAttributes *	getOrCreateLayerAttributes (osg::Node *node)

void	setDuration (osg::Node *node, double duration)

void	addKey (osg::Node *node, const KeyPosition &kp)

void	addRunString (osg::Node *node, const std::string &runString)

void	setJump (osg::Node *node, const JumpData &jumpData)

void	addPresentationKey (const KeyPosition &kp)

void	addPresentationRunString (const std::string &runString)

void	addSlideKey (const KeyPosition &kp)

void	addSlideRunString (const std::string &runString)

void	setSlideJump (const JumpData &jumpData)

void	addLayerKey (const KeyPosition &kp)

void	addLayerRunString (const std::string &runString)

void	setLayerJump (const JumpData &jumpData)

	SlideShowConstructor (osgDB::Options *options)

void	createPresentation ()

void	setBackgroundColor (const osg::Vec4 &color, bool updateClearNode)

const osg::Vec4 &	getBackgroundColor () const

void	setTextColor (const osg::Vec4 &color)

const osg::Vec4 &	getTextColor () const

void	setPresentationName (const std::string &name)

void	setPresentationAspectRatio (float aspectRatio)

void	setPresentationAspectRatio (const std::string &str)

void	setPresentationDuration (double duration)

void	addScriptEngine (const std::string &scriptEngineName)

void	addScriptFile (const std::string &name, const std::string &filename)

void	addScript (const std::string &name, const std::string &language, const std::string &script)

void	addSlide ()

void	selectSlide (int slideNum)

void	setSlideTitle (const std::string &name, PositionData &positionData, FontData &fontData)

void	setSlideBackgrondHUD (bool hud)

void	setSlideBackground (const std::string &name)

void	setSlideDuration (double duration)

Timeout *	addTimeout ()

void	addLayer (bool inheritPreviousLayers=true, bool defineAsBaseLayer=false)

void	selectLayer (int layerNum)

void	setLayerDuration (double duration)

FontData &	getTitleFontData ()

FontData &	getTitleFontDataDefault ()

PositionData &	getTitlePositionData ()

PositionData &	getTitlePositionDataDefault ()

FontData &	getTextFontData ()

FontData &	getTextFontDataDefault ()

PositionData &	getTextPositionData ()

PositionData &	getTextPositionDataDefault ()

void	translateTextCursor (const osg::Vec3 &delta)

PositionData &	getImagePositionData ()

PositionData &	getImagePositionDataDefault ()

PositionData &	getModelPositionData ()

PositionData &	getModelPositionDataDefault ()

void	addEventHandler (PresentationContext presentationContext, osg::ref_ptr< osgGA::GUIEventHandler > handler)

void	keyToDoOperation (PresentationContext presentationContext, int key, Operation operation, const JumpData &jumpData=JumpData())

void	keyToDoOperation (PresentationContext presentationContext, int key, const std::string &command, Operation operation, const JumpData &jumpData=JumpData())

void	keyEventOperation (PresentationContext presentationContext, int key, const KeyPosition &keyPos, const JumpData &jumpData=JumpData())

void	layerClickToDoOperation (Operation operation, const JumpData &jumpData=JumpData())

void	layerClickToDoOperation (const std::string &command, Operation operation, const JumpData &jumpData=JumpData())

void	layerClickEventOperation (const KeyPosition &keyPos, const JumpData &jumpData=JumpData())

void	addPropertyAnimation (PresentationContext presentationContext, PropertyAnimation *propertyAnimation)

void	addScriptCallback (PresentationContext presentationContext, ScriptCallbackType scriptCallbackType, const std::string &functionName)

void	addScriptToNode (ScriptCallbackType scriptCallbackType, const std::string &name, osg::Node *node)

void	addScriptsToNode (const ScriptData &scriptData, osg::Node *node)

void	addToCurrentLayer (osg::Node *subgraph)

void	addBullet (const std::string &bullet, PositionData &positionData, FontData &fontData, const ScriptData &scriptData)

void	addParagraph (const std::string &paragraph, PositionData &positionData, FontData &fontData, const ScriptData &scriptData)

osg::Image *	readImage (const std::string &filename, const ImageData &imageData)

void	addImage (const std::string &filename, const PositionData &positionData, const ImageData &imageData, const ScriptData &scriptData)

void	addStereoImagePair (const std::string &filenameLeft, const ImageData &imageDataLeft, const std::string &filenameRight, const ImageData &imageDataRight, const PositionData &positionData, const ScriptData &scriptData)

void	addGraph (const std::string &filename, const PositionData &positionData, const ImageData &imageData, const ScriptData &scriptData)

void	addVNC (const std::string &filename, const PositionData &positionData, const ImageData &imageData, const std::string &password, const ScriptData &scriptData)

void	addBrowser (const std::string &filename, const PositionData &positionData, const ImageData &imageData, const ScriptData &scriptData)

void	addPDF (const std::string &filename, const PositionData &positionData, const ImageData &imageData, const ScriptData &scriptData)

osg::Image *	addInteractiveImage (const std::string &filename, const PositionData &positionData, const ImageData &imageData, const ScriptData &scriptData)

void	addModel (osg::Node *subgraph, const PositionData &positionData, const ModelData &modelData, const ScriptData &scriptData)

void	addModel (const std::string &filename, const PositionData &positionData, const ModelData &modelData, const ScriptData &scriptData)

void	setUpVolumeScalarProperty (osgVolume::VolumeTile tile, osgVolume::ScalarProperty property, const std::string &source)

void	addVolume (const std::string &filename, const PositionData &positionData, const VolumeData &volumeData, const ScriptData &scriptData)

osg::Group *	takePresentation ()

osg::Group *	getPresentation ()

osg::Switch *	getPresentationSwitch ()

osg::Switch *	getCurrentSlide ()

void	pushCurrentLayer (osg::Group *newLayerGroup)

void	popCurrentLayer ()

osg::Group *	getCurrentLayer ()

void	setLoopPresentation (bool loop)

bool	getLoopPresentation () const

void	setAutoSteppingActive (bool flag=true)

bool	getAutoSteppingActive () const

void	setHUDSettings (HUDSettings *hudSettings)

HUDSettings *	getHUDSettings ()

const HUDSettings *	getHUDSettings () const

osg::ScriptEngine *	getOrCreateScriptEngine (const std::string &language)

Protected Types
typedef std::map< std::string, osg::ref_ptr< osg::ScriptEngine > >	ScriptEngineMap

typedef std::map< std::string, osg::ref_ptr< osg::Script > >	ScriptMap

typedef std::vector< osg::ref_ptr< osg::Group > >	LayerStack

typedef std::list< osg::ref_ptr< osgGA::GUIEventHandler > >	EventHandlerList

Protected Member Functions
void	findImageStreamsAndAddCallbacks (osg::Node *node)

osg::Geometry *	createTexturedQuadGeometry (const osg::Vec3 &pos, const osg::Vec4 &rotation, float width, float height, osg::Image *image, bool &usedTextureRectangle)

void	setUpMovieVolume (osg::Node subgraph, osg::ImageStream imageStream, const ImageData &imageData)

osg::Vec3	computePositionInModelCoords (const PositionData &positionData) const

void	updatePositionFromInModelCoords (const osg::Vec3 &vertex, PositionData &positionData) const

osg::Vec3	convertSlideToModel (const osg::Vec3 &position) const

osg::Vec3	convertModelToSlide (const osg::Vec3 &position) const

osg::AnimationPathCallback *	getAnimationPathCallback (const PositionData &positionData)

osg::Node *	attachMaterialAnimation (osg::Node *model, const PositionData &positionData)

bool	attachTexMat (osg::StateSet *stateset, const ImageData &imageData, float s, float t, bool textureRectangle)

osg::StateSet *	createTransformStateSet ()

osg::Node *	decorateSubgraphForPosition (osg::Node *node, PositionData &positionData)

osg::Node *	decorateSubgraphForPositionAndAnimation (osg::Node *node, const PositionData &positionData)

std::string	findFileAndRecordPath (const std::string &filename)

void	recordOptionsFilePath (const osgDB::Options *options)

Protected Attributes
osg::ref_ptr< osgDB::Options >	_options

osg::Vec3	_slideOrigin

osg::Vec3	_eyeOrigin

double	_slideWidth

double	_slideHeight

double	_slideDistance

unsigned int	_leftEyeMask

unsigned int	_rightEyeMask

osg::ref_ptr< HUDSettings >	_hudSettings

FontData	_titleFontData

FontData	_titleFontDataDefault

PositionData	_titlePositionData

PositionData	_titlePositionDataDefault

FontData	_textFontData

FontData	_textFontDataDefault

PositionData	_textPositionData

PositionData	_textPositionDataDefault

PositionData	_imagePositionData

PositionData	_imagePositionDataDefault

PositionData	_modelPositionData

PositionData	_modelPositionDataDefault

bool	_loopPresentation

bool	_autoSteppingActive

osg::Vec4	_backgroundColor

std::string	_presentationName

double	_presentationDuration

osg::ref_ptr< osgPresentation::PropertyManager >	_propertyManager

osg::ref_ptr< osgPresentation::PropertyEventCallback >	_propertyEventCallback

osg::ref_ptr< osg::Group >	_root

osg::ref_ptr< osg::Switch >	_presentationSwitch

ScriptEngineMap	_scriptEngines

ScriptMap	_scripts

osg::ref_ptr< osg::ClearNode >	_slideClearNode

osg::ref_ptr< osg::Switch >	_slide

std::string	_slideTitle

std::string	_slideBackgroundImageFileName

bool	_slideBackgroundAsHUD

osg::ref_ptr< osg::Group >	_previousLayer

osg::ref_ptr< osg::Group >	_currentLayer

LayerStack	_layerStack

osg::ref_ptr< FilePathData >	_filePathData

osg::ref_ptr< osg::Group >	_layerToApplyEventCallbackTo

EventHandlerList	_currentEventCallbacksToApply

The documentation for this class was generated from the following file:

/home/karlu20/private/installs/OpenSceneGraph/include/osgPresentation/SlideShowConstructor
