gramods::gmGraphics::CubeMapRasterProcessor::Impl Struct Reference

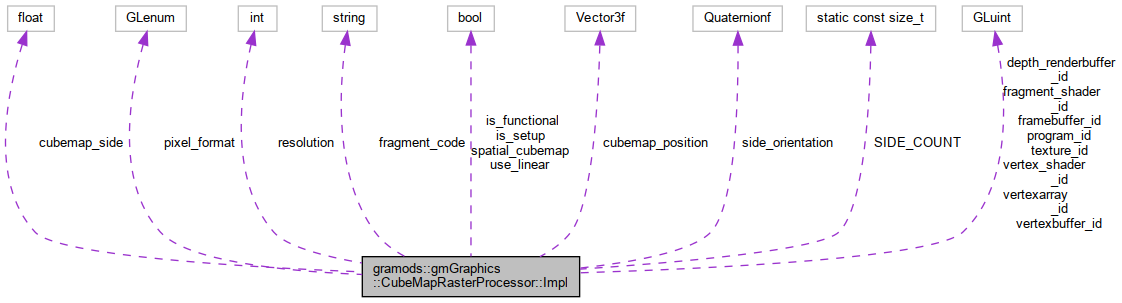

Collaboration diagram for gramods::gmGraphics::CubeMapRasterProcessor::Impl:

Public Member Functions
void	setup ()
void	teardown ()
void	renderFullPipeline (ViewBase::ViewSettings &settings, Eigen::Vector3f pos, Eigen::Quaternionf rot, Eye eye, bool make_square)
void	renderSide (ViewBase::ViewSettings &settings, Eigen::Vector3f pos, Eigen::Quaternionf rot, Eye eye, size_t side)

Public Attributes
Eigen::Quaternionf	side_orientation [SIDE_COUNT]
bool	is_setup = false
bool	is_functional = false
std::string	fragment_code
int	resolution = 2048
bool	use_linear = false
GLenum	pixel_format = GL_RGBA8
GLuint	framebuffer_id [SIDE_COUNT] = { 0 }
GLuint	texture_id [SIDE_COUNT] = { 0 }
GLuint	depth_renderbuffer_id = 0
GLuint	vertex_shader_id = 0
GLuint	fragment_shader_id = 0
GLuint	program_id = 0
GLuint	vertexarray_id = 0
GLuint	vertexbuffer_id = 0
bool	spatial_cubemap = false
Eigen::Vector3f	cubemap_position = Eigen::Vector3f::Zero()
float	cubemap_side = 1.0

Static Public Attributes
static const size_t	SIDE_COUNT = 6

Member Data Documentation

side_orientation

Eigen::Quaternionf gramods::gmGraphics::CubeMapRasterProcessor::Impl::side_orientation[SIDE_COUNT]

Initial value:

= {
      Eigen::Quaternionf(Eigen::Quaternionf::AngleAxisType(
          float(GM_PI_2), Eigen::Vector3f::UnitY())),
      Eigen::Quaternionf(Eigen::Quaternionf::AngleAxisType(
          float(-GM_PI_2), Eigen::Vector3f::UnitY())),
      Eigen::Quaternionf(Eigen::Quaternionf::AngleAxisType(
          float(-GM_PI_2), Eigen::Vector3f::UnitX())),
      Eigen::Quaternionf(Eigen::Quaternionf::AngleAxisType(
          float(GM_PI_2), Eigen::Vector3f::UnitX())),
      Eigen::Quaternionf(Eigen::Quaternionf::AngleAxisType(
          float(GM_PI), Eigen::Vector3f::UnitY())),
      Eigen::Quaternionf::Identity()}

---

The documentation for this struct was generated from the following file:

• /home/karlu/private/program/gramods/modules/gmGraphics/src/CubeMapRasterProcessor.cpp
