#include <OpenVR.hh>

Inheritance diagram for gramods::gmCore::OpenVR:

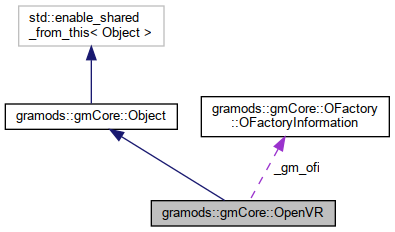

Collaboration diagram for gramods::gmCore::OpenVR:

[legend]

Classes
struct	EventConsumer
	Interface for event consumers that can be registered with the OpenVR instance. More...

struct	Impl

Public Types
typedef std::array< vr::TrackedDevicePose_t, vr::k_unMaxTrackedDeviceCount >	pose_list_t

Public Member Functions
void	setUseVideo (bool on)
	Enable or disable initialization of HMD composer. More...

void	setManifestPath (std::filesystem::path)
	Set path to manifest file, necessary for analog and button input. More...

void	setActionSet (std::string name)
	Set which action set to read out data from. More...

void	initialize () override
	Called to initialize the Object. More...

std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...

std::optional< pose_list_t > &	getPoseList ()
	Retrieve immediate tracking data as a post list, without prediction. More...

void	addEventConsumer (std::weak_ptr< EventConsumer > ec)
	Add an object to receive events from OpenVR. More...

void	removeEventConsumer (EventConsumer *ec)
	Remove an object to receive events from OpenVR. More...

Updateable::clock::time_point	getLastTime ()
	Returns the last time this instance was updated. More...

std::optional< vr::InputAnalogActionData_t >	getAnalog (std::string action, vr::VRInputValueHandle_t device=vr::k_ulInvalidInputValueHandle)
	Returns the analog data associated with the specified action. More...

std::optional< vr::InputDigitalActionData_t >	getDigital (std::string action, vr::VRInputValueHandle_t device=vr::k_ulInvalidInputValueHandle)
	Returns the digital data associated with the specified action. More...

vr::ETrackedDeviceClass	getType (size_t)
	Retrieves the device type (class) of the tracked device with the specified index. More...

vr::ETrackedControllerRole	getRole (size_t)
	Retrieves the role of the tracked device with the specified index. More...

std::string	getSerial (size_t)
	Retrieves the serial number of the tracked device with the specified index. More...

vr::IVRSystem *	ptr ()
	Retrieve a pointer to the OpenVR system. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Member Functions
static Eigen::Matrix4f	convert (const vr::HmdMatrix34_t &m)
	Convert from OpenVR matrix format to Eigen 4x4 matrix. More...

static std::string	typeToString (vr::ETrackedDeviceClass type)
	Convert device type (class) to string, e.g. More...

static std::string	roleToString (vr::ETrackedControllerRole role)
	Convert device role to string, e.g. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Detailed Description

Initializer for OpenVR.

Create one and share this between all components that require OpenVR. OpenVR will be initialized upon calling OpenVR::initialize (automatically called by Configuration) and deinitialized when all shared pointers are released and the object destroyed.

Member Function Documentation

◆ addEventConsumer()

void gramods::gmCore::OpenVR::addEventConsumer ( std::weak_ptr< EventConsumer > ec )

Add an object to receive events from OpenVR.

This has no effect if the pointer is null or invalid or if the object has already been added. The event consumers will be called in the order the were added.

◆ convert()

Eigen::Matrix4f gramods::gmCore::OpenVR::convert ( const vr::HmdMatrix34_t & m )

static

Convert from OpenVR matrix format to Eigen 4x4 matrix.

◆ getAnalog()

std::optional< vr::InputAnalogActionData_t > gramods::gmCore::OpenVR::getAnalog	(	std::string	action,
		vr::VRInputValueHandle_t	device = `vr::k_ulInvalidInputValueHandle`
	)

Returns the analog data associated with the specified action.

◆ getDefaultKey()

std::string gramods::gmCore::OpenVR::getDefaultKey ( )

inlineoverridevirtual

Returns the default key, in Configuration, for the Object.

Reimplemented from gramods::gmCore::Object.

◆ getDigital()

std::optional< vr::InputDigitalActionData_t > gramods::gmCore::OpenVR::getDigital	(	std::string	action,
		vr::VRInputValueHandle_t	device = `vr::k_ulInvalidInputValueHandle`
	)

Returns the digital data associated with the specified action.

◆ getLastTime()

Updateable::clock::time_point gramods::gmCore::OpenVR::getLastTime ( )

Returns the last time this instance was updated.

◆ getPoseList()

std::optional< OpenVR::pose_list_t > & gramods::gmCore::OpenVR::getPoseList ( )

Retrieve immediate tracking data as a post list, without prediction.

This is cached so multiple calls during one frame does not equate multiple calls to OpenVR.

◆ getRole()

vr::ETrackedControllerRole gramods::gmCore::OpenVR::getRole ( size_t idx )

Retrieves the role of the tracked device with the specified index.

◆ getSerial()

std::string gramods::gmCore::OpenVR::getSerial ( size_t idx )

Retrieves the serial number of the tracked device with the specified index.

◆ getType()

vr::ETrackedDeviceClass gramods::gmCore::OpenVR::getType ( size_t idx )

Retrieves the device type (class) of the tracked device with the specified index.

◆ initialize()

void gramods::gmCore::OpenVR::initialize ( )

overridevirtual

Called to initialize the Object.

This should be called once only!

Sub classes should override this method to make use of set parameter data. They should also always call its base class' implementation as well.

Reimplemented from gramods::gmCore::Object.

◆ ptr()

vr::IVRSystem * gramods::gmCore::OpenVR::ptr ( )

Retrieve a pointer to the OpenVR system.

◆ removeEventConsumer()

void gramods::gmCore::OpenVR::removeEventConsumer ( EventConsumer * ec )

Remove an object to receive events from OpenVR.

This has no effect if the pointer is null or if the object has not been added.

◆ roleToString()

std::string gramods::gmCore::OpenVR::roleToString ( vr::ETrackedControllerRole role )

static

Convert device role to string, e.g.

for print-out.

◆ setActionSet()

void gramods::gmCore::OpenVR::setActionSet ( std::string name )

Set which action set to read out data from.

XML-attribute: actionSet

◆ setManifestPath()

void gramods::gmCore::OpenVR::setManifestPath ( std::filesystem::path path )

Set path to manifest file, necessary for analog and button input.

XML-attribute: manifestPath

◆ setUseVideo()

void gramods::gmCore::OpenVR::setUseVideo ( bool on )

Enable or disable initialization of HMD composer.

Default is false.

XML-attribute: useVideo

◆ typeToString()

std::string gramods::gmCore::OpenVR::typeToString ( vr::ETrackedDeviceClass type )

static

Convert device type (class) to string, e.g.

for print-out.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmCore/include/gmCore/OpenVR.hh
/home/karlu/private/program/gramods/modules/gmCore/src/OpenVR.cpp
