gramods::gmCore::Object Class Reference

Base type for objects in the Gramods package for standardized handling of construction, initialization and destruction, and for setting up configuration based on configuration files, read using gmCore::Configuration. More...

#include <Object.hh>

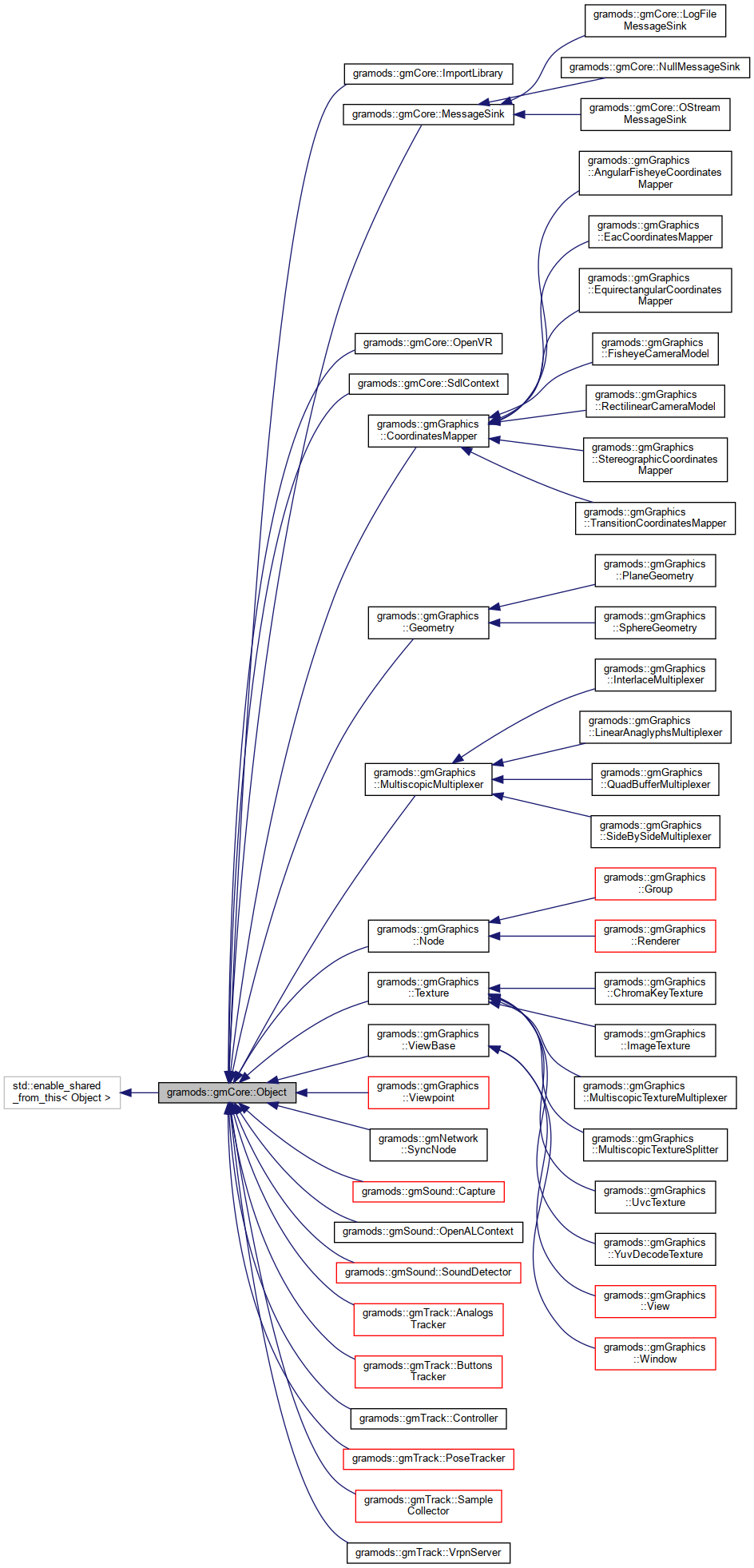

Inheritance diagram for gramods::gmCore::Object:

Collaboration diagram for gramods::gmCore::Object:

Classes
struct	Visitor
	The visitor of a design pattern for automatic traversal. More...

Public Member Functions
	Object ()
	Initializes internal data. More...
virtual	~Object ()
	Cleaning up internal data. More...
virtual void	initialize ()
	Called to initialize the Object. More...
virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...
virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist. More...
virtual std::string	getDefaultKey ()
	Returns the default key for the Object when automatically instantiated in a Configuration, i.e. More...
bool	isInitialized ()
	Returns true if the Object is initialized. More...

Detailed Description

Base type for objects in the Gramods package for standardized handling of construction, initialization and destruction, and for setting up configuration based on configuration files, read using gmCore::Configuration.

The most typical usage is

gmCore::Configuration config(argc, argv);

std::shared_ptr<MyClass> my_object;
if (! config.getObject(my_object)) {
  GM_ERR("MyCode", "Cannot run without MyClass instance");
  exit(-1);
}

If gmCore::Configuration is not used, then the classes may be manually instantiated and initialized. The basic initialization procedure should then be as follows:

1. Instantiate with empty constructor.
2. Call setters to configure the object.
3. Call initialize.
4. Object is ready to be used.

All three steps are performed by the Configuration tool and an Object extracted therefrom will be ready to be used.

Constructor & Destructor Documentation

Object()

gramods::gmCore::Object::Object ( )

inline

Initializes internal data.

~Object()

virtual gramods::gmCore::Object::~Object ( )

inlinevirtual

Cleaning up internal data.

Member Function Documentation

accept()

virtual void gramods::gmCore::Object::accept ( Visitor *  visitor )

inlinevirtual

Calls the visitors apply method with this as argument.

Reimplemented in gramods::gmGraphics::Transform, and gramods::gmGraphics::TrackedTransform.

getDefaultKey()

virtual std::string gramods::gmCore::Object::getDefaultKey ( )

inlinevirtual

Returns the default key for the Object when automatically instantiated in a Configuration, i.e.

where it ends up in a parent Object. Default is "object", but this should be overriden by sub classes and can also be overridden in XML by using the attribute KEY, as in KEY="view".

The key can also be used to extract a specific object from a Configuration instance:

gmCore::Configuration config(argc, argv);

std::shared_ptr<MyClass> my_object;
if (! config.getObjectByKey("view", my_object)) {
  GM_ERR("MyCode", "Cannot run without MyClass instance");
  exit(-1);
}

Reimplemented in gramods::gmTrack::SinglePoseTracker, gramods::gmTrack::MultiPoseTracker, gramods::gmTrack::Controller, gramods::gmTrack::ButtonsTracker, gramods::gmTrack::AnalogsTracker, gramods::gmSound::SoundDetector, gramods::gmSound::OpenALContext, gramods::gmSound::Capture, gramods::gmNetwork::SyncNode, gramods::gmGraphics::ViewTexture, gramods::gmGraphics::Viewpoint, gramods::gmGraphics::Texture, gramods::gmGraphics::Node, gramods::gmGraphics::MultiscopicMultiplexer, gramods::gmGraphics::Geometry, gramods::gmGraphics::CoordinatesMapper, gramods::gmCore::SdlContext, and gramods::gmCore::OpenVR.

initialize()

virtual void gramods::gmCore::Object::initialize ( )

inlinevirtual

Called to initialize the Object.

This should be called once only!

Sub classes should override this method to make use of set parameter data. They should also always call its base class' implementation as well.

Reimplemented in gramods::gmTrack::VrpnServer, gramods::gmSound::OpenALContext, gramods::gmSound::OpenALCapture, gramods::gmSound::Multilateration, gramods::gmSound::CaptureFromWav, gramods::gmNetwork::SyncNode, gramods::gmGraphics::UvcTexture, gramods::gmGraphics::SdlWindow, gramods::gmGraphics::ObjRenderer, gramods::gmGraphics::ImageTexture, gramods::gmCore::SdlContext, gramods::gmCore::OpenVR, gramods::gmCore::MessageSink, and gramods::gmCore::ImportLibrary.

isInitialized()

bool gramods::gmCore::Object::isInitialized ( )

inline

Returns true if the Object is initialized.

Sub classes must call Object::initialize() if and only if the initialization succeeded.

traverse()

virtual void gramods::gmCore::Object::traverse ( Visitor *  visitor )

inlinevirtual

Calls the child Object's accept method, if such exist.

Reimplemented in gramods::gmTrack::VrpnServer, gramods::gmTrack::SingleToMultiPoseTracker, gramods::gmTrack::SampleCollector, gramods::gmTrack::RelativeSinglePoseTracker, gramods::gmTrack::RegisteredSinglePoseTracker, gramods::gmTrack::RegisteredMultiPoseTracker, gramods::gmTrack::OpenVRPoseTracker, gramods::gmTrack::OpenVRButtonsTracker, gramods::gmTrack::OpenVRAnalogsTracker, gramods::gmTrack::OffsetSinglePoseTracker, gramods::gmTrack::MultiToSinglePoseTracker, gramods::gmTrack::Controller, gramods::gmTrack::ButtonsMapper, gramods::gmTrack::AnalogsMapper, gramods::gmSound::Multilateration, gramods::gmGraphics::YuvDecodeTexture, gramods::gmGraphics::Window, gramods::gmGraphics::ViewTexture, gramods::gmGraphics::ViewMixView, gramods::gmGraphics::ViewBase, gramods::gmGraphics::TransitionCoordinatesMapper, gramods::gmGraphics::TrackedViewpoint, gramods::gmGraphics::TiledView, gramods::gmGraphics::TextureWarpedView, gramods::gmGraphics::TextureRenderer, gramods::gmGraphics::TextureProjectedView, gramods::gmGraphics::SphereRenderer, gramods::gmGraphics::SpatialSphericalView, gramods::gmGraphics::SdlWindow, gramods::gmGraphics::SaveView, gramods::gmGraphics::RemapperView, gramods::gmGraphics::PosedSphericalView, gramods::gmGraphics::MultiscopicView, gramods::gmGraphics::MultiscopicTextureSplitter, gramods::gmGraphics::MultiscopicTextureMultiplexer, gramods::gmGraphics::HmdView, gramods::gmGraphics::Group, gramods::gmGraphics::GeometryCorrectedProjectorView, gramods::gmGraphics::ChromaKeyView, and gramods::gmGraphics::ChromaKeyTexture.

---

The documentation for this class was generated from the following file:

• /home/karlu/private/program/gramods/modules/gmCore/include/gmCore/Object.hh
