The base of graphics Window implementations. More...

#include <Window.hh>

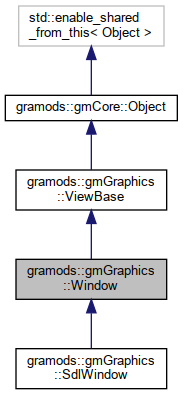

Inheritance diagram for gramods::gmGraphics::Window:

[legend]

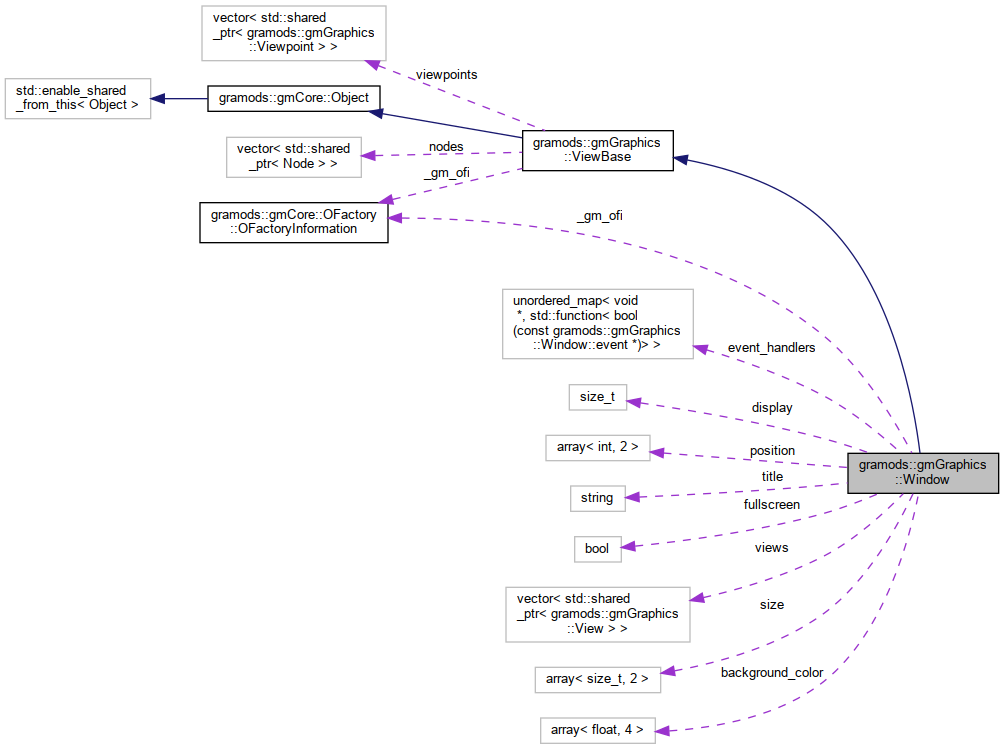

Collaboration diagram for gramods::gmGraphics::Window:

[legend]

Classes
struct	event

struct	key_event

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Dispatches specified renders, both method argument and class members, to the views in this window. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	addView (std::shared_ptr< View > view)
	Adds a view to the window. More...

virtual void	makeGLContextCurrent ()=0
	Asks the Window to make its GL context current. More...

virtual void	close ()=0
	Asks the Window to close itself. More...

virtual void	setFullscreen (bool on)
	Activates or deactivates fullscreen mode. More...

virtual void	setDisplay (size_t N)
	Set on which display the window should be shown. More...

virtual void	setSize (gmCore::size2 s)
	Sets the size of the drawable canvas of this window, in pixels. More...

virtual void	setPosition (gmCore::int2 p)
	Sets the position of the window. More...

virtual gmCore::size2	getSize ()
	Returns the size of the drawable canvas of this window, in pixels. More...

virtual void	setTitle (std::string t)
	Sets the title of the windows. More...

virtual void	setBackgroundColor (gmCore::float4 c)
	Set the background color of the window. More...

virtual void	processEvents ()=0
	Triggers the windows to process its incoming events. More...

virtual bool	handleEvent (event *)
	Internal events handler, called from processEvents(). More...

void	addEventHandler (std::function< bool(const event )> fun, void tag)
	Registers an event handler associated with the specified tag. More...

void	removeEventHandler (void *tag)
	Removes the event handler associnated with the specified tag. More...

virtual bool	isOpen ()
	Returns true as long as the window is open. More...

virtual void	swap ()=0
	Posts a swap buffers command to the underlying windowing system, to show the newly rendered material. More...

virtual void	sync ()
	Calls glFinish on the GL context. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

virtual std::string	getDefaultKey ()
	Returns the default key for the Object when automatically instantiated in a Configuration, i.e. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Protected Attributes
std::vector< std::shared_ptr< View > >	views

bool	fullscreen = false

size_t	display = 0

std::string	title = "untitled gramods window"

gmCore::size2	size = {640, 480}

gmCore::int2	position

gmCore::float4	background_color = {0.f, 0.f, 0.f, 0.f}

std::unordered_map< void , std::function< bool(const event )> >	event_handlers

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Detailed Description

The base of graphics Window implementations.

Member Function Documentation

◆ addEventHandler()

void gramods::gmGraphics::Window::addEventHandler	(	std::function< bool(const event *)>	fun,
		void *	tag
	)

Registers an event handler associated with the specified tag.

The tag can be a pointer to any object and is only used for calls to removeEventHandler.

◆ addView()

gramods::gmCore::OFactory::PointerSetterInsert gm_ofi_Window_pointer_view &Window::_gm_ofi(& gramods::gmGraphics::Window::addView ( std::shared_ptr< View > view )

inline

Adds a view to the window.

A window without views will render nothing - it is the tiles that provide the graphics. If multiple views are added, then these will be rendered over each other.

XML-attribute: view

◆ close()

virtual void gramods::gmGraphics::Window::close ( )

pure virtual

Asks the Window to close itself.

This should be overloaded by sub classes to support run-time changes.

Implemented in gramods::gmGraphics::SdlWindow.

◆ getSize()

virtual gmCore::size2 gramods::gmGraphics::Window::getSize ( )

inlinevirtual

Returns the size of the drawable canvas of this window, in pixels.

This should be overloaded by sub classes to also support run-time changes.

Reimplemented in gramods::gmGraphics::SdlWindow.

◆ handleEvent()

bool gramods::gmGraphics::Window::handleEvent ( event * evt )

virtual

Internal events handler, called from processEvents().

This will in turn call any registered event handler.

◆ isOpen()

virtual bool gramods::gmGraphics::Window::isOpen ( )

inlinevirtual

Returns true as long as the window is open.

This does not necessarily mean that the window is visible and it may even be minimized.

Reimplemented in gramods::gmGraphics::SdlWindow.

◆ makeGLContextCurrent()

virtual void gramods::gmGraphics::Window::makeGLContextCurrent ( )

pure virtual

Asks the Window to make its GL context current.

This is called automatically by the renderFullPipeline method.

Implemented in gramods::gmGraphics::SdlWindow.

◆ processEvents()

virtual void gramods::gmGraphics::Window::processEvents ( )

pure virtual

Triggers the windows to process its incoming events.

This must be called at even intervals for the window to behave properly.

Implemented in gramods::gmGraphics::SdlWindow.

◆ removeEventHandler()

void gramods::gmGraphics::Window::removeEventHandler ( void * tag )

Removes the event handler associnated with the specified tag.

◆ renderFullPipeline()

void gramods::gmGraphics::Window::renderFullPipeline ( ViewSettings settings )

overridevirtual

Dispatches specified renders, both method argument and class members, to the views in this window.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ setBackgroundColor()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_Window_param_backgroundColor &Window::_gm_ofi(& gramods::gmGraphics::Window::setBackgroundColor ( gmCore::float4 c )

inlinevirtual

Set the background color of the window.

XML-attribute: backgroundColor

◆ setDisplay()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_Window_param_display &Window::_gm_ofi(& gramods::gmGraphics::Window::setDisplay ( size_t N )

inlinevirtual

Set on which display the window should be shown.

XML-attribute: display

◆ setFullscreen()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_Window_param_fullscreen &Window::_gm_ofi(& gramods::gmGraphics::Window::setFullscreen ( bool on )

inlinevirtual

Activates or deactivates fullscreen mode.

This should be overloaded by sub classes to also support run-time changes.

XML-attribute: fullscreen

◆ setPosition()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_Window_param_position &Window::_gm_ofi(& gramods::gmGraphics::Window::setPosition ( gmCore::int2 p )

inlinevirtual

Sets the position of the window.

XML-attribute: position

◆ setSize()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_Window_param_size &Window::_gm_ofi(& gramods::gmGraphics::Window::setSize ( gmCore::size2 s )

inlinevirtual

Sets the size of the drawable canvas of this window, in pixels.

This should be overloaded by sub classes to also support run-time changes.

XML-attribute: size

◆ setTitle()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_Window_param_title &Window::_gm_ofi(& gramods::gmGraphics::Window::setTitle ( std::string t )

inlinevirtual

Sets the title of the windows.

This should be overloaded by sub classes to also support run-time changes.

XML-attribute: title

◆ swap()

virtual void gramods::gmGraphics::Window::swap ( )

pure virtual

Posts a swap buffers command to the underlying windowing system, to show the newly rendered material.

Most drivers allow this command to return immediately, however subsequent calls to render to the same context may stall to wait for vertical scan synchronization (v-sync).

Implemented in gramods::gmGraphics::SdlWindow.

◆ sync()

void gramods::gmGraphics::Window::sync ( )

virtual

Calls glFinish on the GL context.

The only reason to call this method is if the application needs to wait for vertical scan synchronization (v-sync), for example for timing reasons.

◆ traverse()

void gramods::gmGraphics::Window::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmGraphics::ViewBase.

Member Data Documentation

◆ position

gmCore::int2 gramods::gmGraphics::Window::position

protected

Initial value:

= { (std::numeric_limits<int>::max)(),

(std::numeric_limits<int>::max)() }

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/Window.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/Window.cpp
