The viewpoint represents a point in space from which the view is to be rendered, and an orientation. More...

#include <Viewpoint.hh>

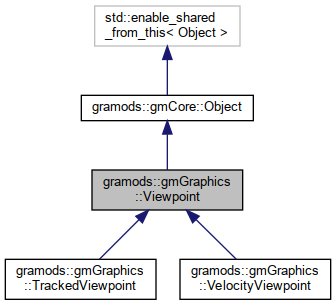

Inheritance diagram for gramods::gmGraphics::Viewpoint:

[legend]

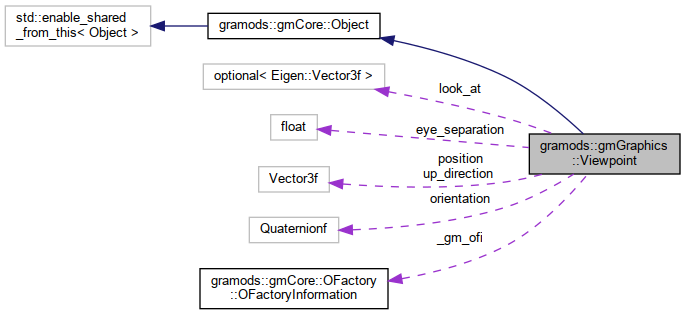

Collaboration diagram for gramods::gmGraphics::Viewpoint:

[legend]

Public Member Functions
virtual Eigen::Vector3f	getPosition (Eye eye=Eye::MONO)
	Returns the position of the viewpoint. More...

virtual Eigen::Quaternionf	getOrientation (Eye eye=Eye::MONO)
	Returns the orientation of the viewpoint. More...

virtual void	setPosition (Eigen::Vector3f p)
	Explicitly sets the position of the Viewpoint. More...

void	setEyeSeparation (float e)
	Sets the distance between the eyes for stereoscopic (or multiscopic) rendering, in internal units, typically meters. More...

virtual void	setOrientation (Eigen::Quaternionf q)
	Explicitly sets the orientation of the Viewpoint. More...

virtual void	setUpDirection (Eigen::Vector3f up)
	Set the up direction to be used in a later call to setLookAt. More...

virtual void	setLookAt (Eigen::Vector3f p)
	Sets a point that the viewpoint should be rotated towards. More...

virtual void	unsetLookAt ()
	Unsets the look-at point so that the viewpoint orientation is no longer automatically rotated. More...

virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Protected Attributes
Eigen::Vector3f	position = Eigen::Vector3f::Zero()

Eigen::Quaternionf	orientation = Eigen::Quaternionf::Identity()

Eigen::Vector3f	up_direction = Eigen::Vector3f(0, 1, 0)

std::optional< Eigen::Vector3f >	look_at

float	eye_separation = 0.06f

Detailed Description

The viewpoint represents a point in space from which the view is to be rendered, and an orientation.

The orientation may be used for view orientation or for eye separation. The view may use this Viewpoint to create Camera fitting for rendering.

Sub classes may implement dynamically updated Viewpoints, based on animation or tracking data.

Member Function Documentation

◆ getDefaultKey()

virtual std::string gramods::gmGraphics::Viewpoint::getDefaultKey ( )

inlineoverridevirtual

Returns the default key, in Configuration, for the Object.

Reimplemented from gramods::gmCore::Object.

◆ getOrientation()

Eigen::Quaternionf gramods::gmGraphics::Viewpoint::getOrientation ( Eye eye = Eye::MONO )

virtual

Returns the orientation of the viewpoint.

Observe that a view may ignore the orientation value if this does not make any difference for its appearance.

Parameters

[in] eye The eye for which to fetch orientation. Default is Eye::MONO.

Reimplemented in gramods::gmGraphics::TrackedViewpoint.

◆ getPosition()

Eigen::Vector3f gramods::gmGraphics::Viewpoint::getPosition ( Eye eye = Eye::MONO )

virtual

Returns the position of the viewpoint.

Parameters

[in] eye The eye for which to fetch position. Default is Eye::MONO.

Reimplemented in gramods::gmGraphics::TrackedViewpoint.

◆ setEyeSeparation()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_Viewpoint_param_eyeSeparation &Viewpoint::_gm_ofi(& gramods::gmGraphics::Viewpoint::setEyeSeparation ( float e )

inline

Sets the distance between the eyes for stereoscopic (or multiscopic) rendering, in internal units, typically meters.

Default is 0.06 m.

XML-attribute: eyeSeparation

◆ setLookAt()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_Viewpoint_param_lookAt &Viewpoint::_gm_ofi(& gramods::gmGraphics::Viewpoint::setLookAt ( Eigen::Vector3f p )

inlinevirtual

Sets a point that the viewpoint should be rotated towards.

Observe that this affects only the viewpoint orientation - camera orientation will not automatically toe-in to this point.

XML-attribute: lookAt

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &); unsetLookat()

◆ setOrientation()

void gramods::gmGraphics::Viewpoint::setOrientation ( Eigen::Quaternionf q )

virtual

Explicitly sets the orientation of the Viewpoint.

This may be ignored or instantaneously overwritten by dynamic updates of the position value.

XML-attribute: orientation

See also: gramods::operator>>(std::istream &, Eigen::Quaternionf &)

◆ setPosition()

void gramods::gmGraphics::Viewpoint::setPosition ( Eigen::Vector3f p )

virtual

Explicitly sets the position of the Viewpoint.

This may be ignored or instantaneously overwritten by dynamic updates of the position value.

XML-attribute: position

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ setUpDirection()

void gramods::gmGraphics::Viewpoint::setUpDirection ( Eigen::Vector3f up )

virtual

Set the up direction to be used in a later call to setLookAt.

This does nothing if setLookAt is not used.

XML-attribute: upDirection

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ unsetLookAt()

virtual void gramods::gmGraphics::Viewpoint::unsetLookAt ( )

inlinevirtual

Unsets the look-at point so that the viewpoint orientation is no longer automatically rotated.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/Viewpoint.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/Viewpoint.cpp
