gramods::gmGraphics::ViewBase Class Reference

The common base for nodes taking renderers for dispatching rendering jobs. More...

#include <ViewBase.hh>

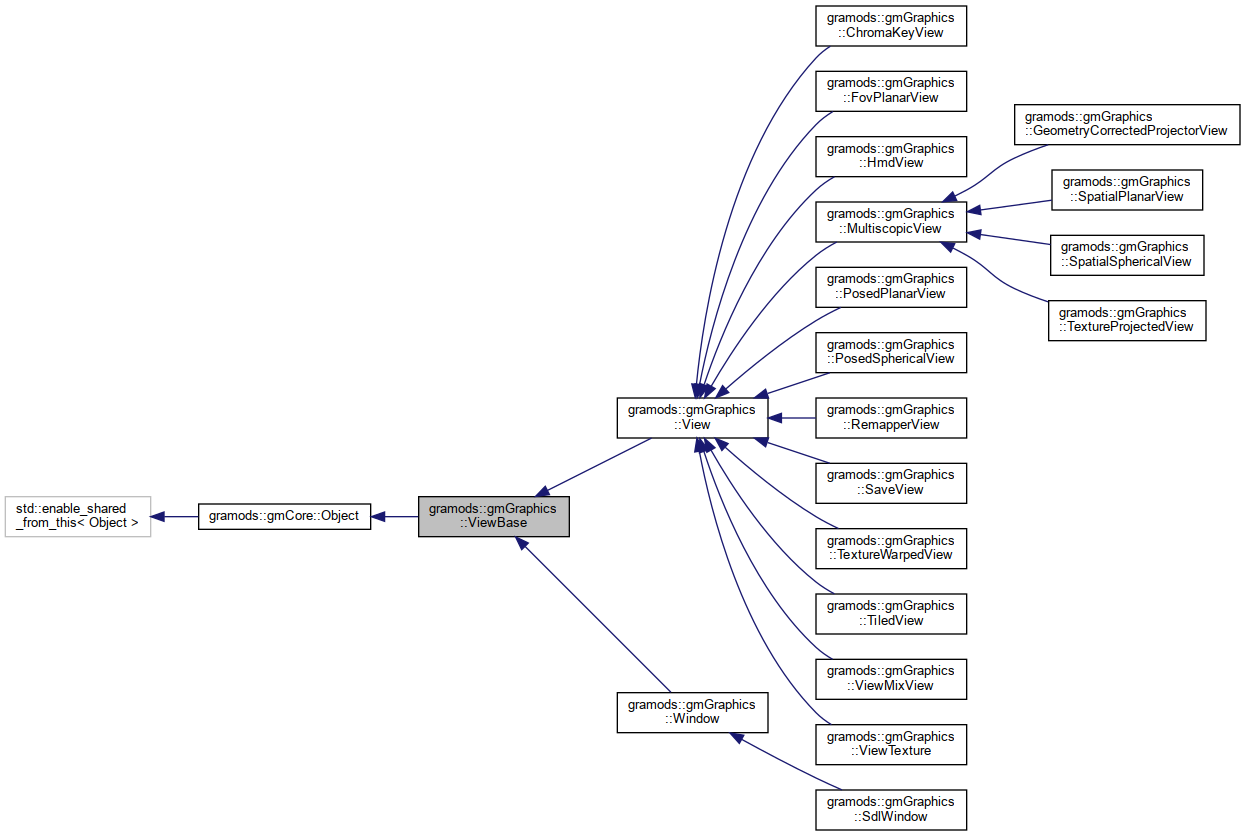

Inheritance diagram for gramods::gmGraphics::ViewBase:

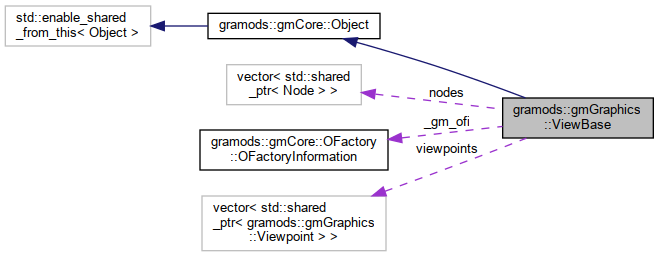

Collaboration diagram for gramods::gmGraphics::ViewBase:

Classes
struct	ViewSettings
	Package of settings affecting the rendering. More...

Public Member Functions
virtual void	renderFullPipeline (ViewSettings settings)
	Dispatches specified renders, both method argument and class members. More...
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...
void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...
void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...
void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...
Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...
virtual	~Object ()
	Cleaning up internal data. More...
virtual void	initialize ()
	Called to initialize the Object. More...
virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...
virtual std::string	getDefaultKey ()
	Returns the default key for the Object when automatically instantiated in a Configuration, i.e. More...
bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Protected Member Functions
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes
Node::list	nodes
std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

The common base for nodes taking renderers for dispatching rendering jobs.

Member Function Documentation

addNode()

gramods::gmCore::OFactory::PointerSetterInsert gm_ofi_ViewBase_pointer_node &ViewBase::_gm_ofi(& gramods::gmGraphics::ViewBase::addNode ( std::shared_ptr< Node >  node )

inline

Adds a scenegraph to the view.

addViewpoint()

gramods::gmCore::OFactory::PointerSetterInsert gm_ofi_ViewBase_pointer_viewpoint &ViewBase::_gm_ofi(& gramods::gmGraphics::ViewBase::addViewpoint ( std::shared_ptr< Viewpoint >  viewpoint )

inline

Adds a viewpoint to use in the views rendered by this ViewBase.

XML-attribute: viewpoint

populateViewSettings()

void gramods::gmGraphics::ViewBase::populateViewSettings ( ViewSettings &  settings )

protected

Adds the dispatcher's local renderers and viewpoint, if set.

Call this from overloaded renderFullPipeline.

renderFullPipeline()

void gramods::gmGraphics::ViewBase::renderFullPipeline ( ViewSettings  settings )

virtual

Dispatches specified renders, both method argument and class members.

The default implementation calls the renderers but with a default Camera, and should be overloaded by sub classes to implement their respective effects.

Reimplemented in gramods::gmGraphics::MultiscopicView, gramods::gmGraphics::Window, gramods::gmGraphics::ViewTexture, gramods::gmGraphics::ViewMixView, gramods::gmGraphics::TiledView, gramods::gmGraphics::TextureWarpedView, gramods::gmGraphics::SaveView, gramods::gmGraphics::RemapperView, gramods::gmGraphics::PosedSphericalView, gramods::gmGraphics::PosedPlanarView, gramods::gmGraphics::HmdView, gramods::gmGraphics::FovPlanarView, and gramods::gmGraphics::ChromaKeyView.

setViewpoint()

void gramods::gmGraphics::ViewBase::setViewpoint ( std::shared_ptr< Viewpoint >  viewpoint )

inline

Sets the viewpoint to use in the views rendered by this ViewBase.

traverse()

void gramods::gmGraphics::ViewBase::traverse ( Visitor *  visitor )

overridevirtual

Propagates the specified visitor.

See also

Object::Visitor

Reimplemented from gramods::gmCore::Object.

Reimplemented in gramods::gmGraphics::Window, gramods::gmGraphics::ViewTexture, and gramods::gmGraphics::ViewMixView.

---

The documentation for this class was generated from the following files:

• /home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/ViewBase.hh
• /home/karlu/private/program/gramods/modules/gmGraphics/src/ViewBase.cpp
