The ViewTexture is a View implements the TextureInterface to provide a texture of what is drawn by another view. More...

#include <ViewTexture.hh>

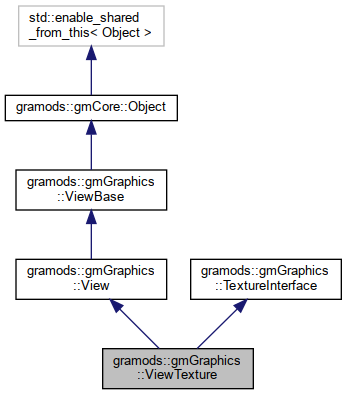

Inheritance diagram for gramods::gmGraphics::ViewTexture:

[legend]

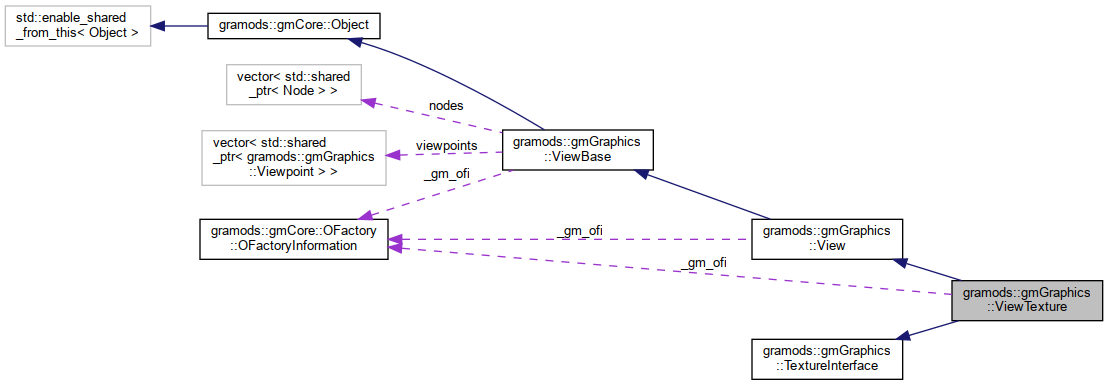

Collaboration diagram for gramods::gmGraphics::ViewTexture:

[legend]

Classes
struct	Impl

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Forwards rendering to the sub view and saves the result. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setResolution (gmCore::size2 res)
	Sets the resolution to render sub views at, regarless of resolution of the parent. More...

void	setUseFloat (bool on)
	Set to true if the texture should be floating point format. More...

bool	getUseFloat ()
	Returns true iff the texture is in floating point format, false otherwise. More...

void	setUseAlpha (bool on)
	Set to true if the texture should have an alpha channel. More...

bool	getUseAlpha ()
	Returns true iff the texture should have an alpha channel. More...

void	addView (std::shared_ptr< View > view)
	Adds a view to render to this texture. More...

GLuint	updateTexture (size_t frame_number, Eye eye) override
	Updates the texture and returns the ID of the associated GL texture object. More...

virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

The ViewTexture is a View implements the TextureInterface to provide a texture of what is drawn by another view.

As with any other hierarchy of views or renderers, cyclic graph are not allowed, e.g. to let a ViewTexture create a texture of the view containing the renderer using this texture.

Member Function Documentation

◆ addView()

void gramods::gmGraphics::ViewTexture::addView ( std::shared_ptr< View > view )

Adds a view to render to this texture.

XML-attribute: view

◆ getDefaultKey()

virtual std::string gramods::gmGraphics::ViewTexture::getDefaultKey ( )

inlineoverridevirtual

Returns the default key, in Configuration, for the Object.

Reimplemented from gramods::gmGraphics::View.

◆ getUseAlpha()

bool gramods::gmGraphics::ViewTexture::getUseAlpha ( )

Returns true iff the texture should have an alpha channel.

◆ getUseFloat()

bool gramods::gmGraphics::ViewTexture::getUseFloat ( )

Returns true iff the texture is in floating point format, false otherwise.

◆ renderFullPipeline()

void gramods::gmGraphics::ViewTexture::renderFullPipeline ( ViewSettings settings )

overridevirtual

Forwards rendering to the sub view and saves the result.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ setResolution()

void gramods::gmGraphics::ViewTexture::setResolution ( gmCore::size2 res )

Sets the resolution to render sub views at, regarless of resolution of the parent.

Default is 1024x1024.

XML-attribute: resolution

◆ setUseAlpha()

void gramods::gmGraphics::ViewTexture::setUseAlpha ( bool on )

Set to true if the texture should have an alpha channel.

Default is true.

◆ setUseFloat()

void gramods::gmGraphics::ViewTexture::setUseFloat ( bool on )

Set to true if the texture should be floating point format.

Default is off.

◆ traverse()

void gramods::gmGraphics::ViewTexture::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmGraphics::ViewBase.

◆ updateTexture()

GLuint gramods::gmGraphics::ViewTexture::updateTexture	(	size_t	frame_number,
		Eye	eye
	)

overridevirtual

Updates the texture and returns the ID of the associated GL texture object.

Must be called with GL context. Observe also that this method may perform off-screen rendering.

Parameters

frame_number	The current frame being rendered. This number should increment by one for each frame, however it may wrap around and start over at zero.
eye	Eye for which the texture is requested. An implementation may use different textures for different eyes or may reuse the same texture for all eyes.

Returns: OpenGL texture ID of the updated texture

Implements gramods::gmGraphics::TextureInterface.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/ViewTexture.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/ViewTexture.cpp
