View that reads off head tracking and calls the renderers to output the rendered contents to a HMD via OpenVR, and also displays the results in the current view. More...

#include <HmdView.hh>

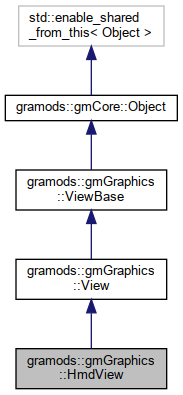

Inheritance diagram for gramods::gmGraphics::HmdView:

[legend]

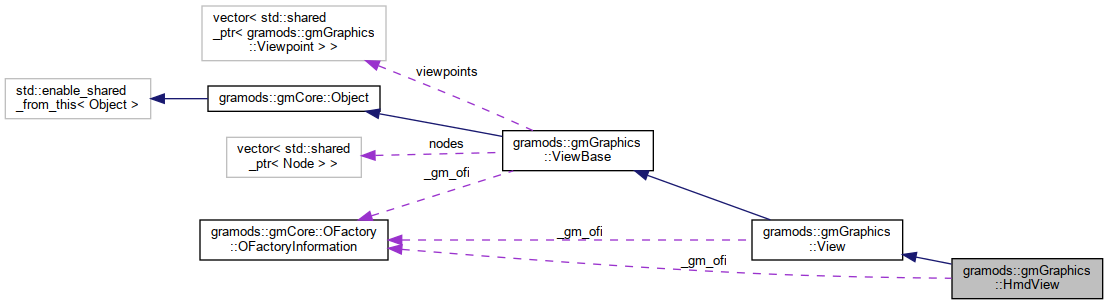

Collaboration diagram for gramods::gmGraphics::HmdView:

[legend]

Classes
struct	Impl

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Dispatches specified renders, both method argument and class members. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setShowEye (size_t t)
	Sets if left eye (0, default), right eye (1) or both eyes (2) should be shown in the view. More...

void	setOpenVR (std::shared_ptr< gmCore::OpenVR > openvr)
	Set the OpenVR instance. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

View that reads off head tracking and calls the renderers to output the rendered contents to a HMD via OpenVR, and also displays the results in the current view.

Member Function Documentation

◆ renderFullPipeline()

void gramods::gmGraphics::HmdView::renderFullPipeline ( ViewSettings settings )

overridevirtual

Dispatches specified renders, both method argument and class members.

The default implementation calls the renderers but with a default Camera, and should be overloaded by sub classes to implement their respective effects.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ setOpenVR()

void gramods::gmGraphics::HmdView::setOpenVR ( std::shared_ptr< gmCore::OpenVR > openvr )

Set the OpenVR instance.

XML-attribute: openVR

◆ setShowEye()

void gramods::gmGraphics::HmdView::setShowEye ( size_t t )

Sets if left eye (0, default), right eye (1) or both eyes (2) should be shown in the view.

◆ traverse()

void gramods::gmGraphics::HmdView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/HmdView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/HmdView.cpp
