This view provides a symmetrical projection of the renderers, on a spherical projection surface. More...

#include <PosedSphericalView.hh>

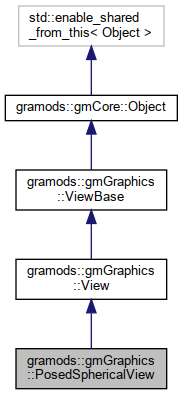

Inheritance diagram for gramods::gmGraphics::PosedSphericalView:

[legend]

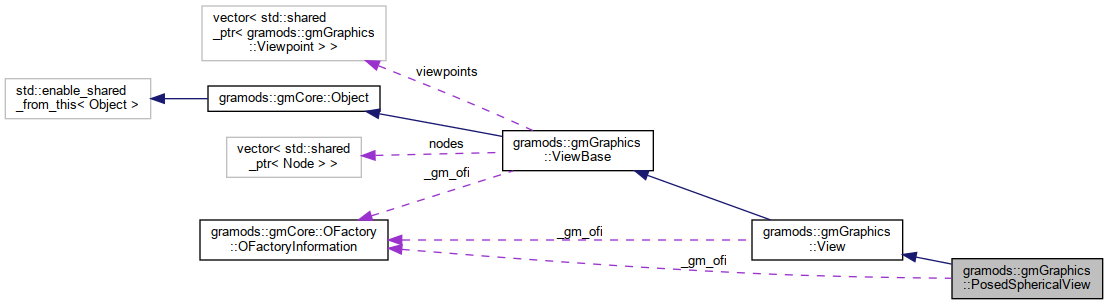

Collaboration diagram for gramods::gmGraphics::PosedSphericalView:

[legend]

Classes
struct	Impl

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Dispatches renderers. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setCubeMapResolution (int res)
	Sets the resolution of the intermediate cube map, in pixels. More...

void	setLinearInterpolation (bool on)
	Turn on or off linear interpolation in the projection from linear graphics to non-linear projection space. More...

void	setCoordinatesMapper (std::shared_ptr< CoordinatesMapper > mapper)
	Sets the coordinates mapper that should be used to map the 3D surrounding into the 2D view. More...

void	setMakeSquare (bool on)
	When set to true, the output on the view will be square, so that using a fisheye mapper would render the view as a circle instead of an ellipse. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

This view provides a symmetrical projection of the renderers, on a spherical projection surface.

The PosedSphericalView maps the renderers' graphics into a spherical projection surface, centered on the viewpoint's position, from the viewpoint's position and orientation.

Member Function Documentation

◆ renderFullPipeline()

void gramods::gmGraphics::PosedSphericalView::renderFullPipeline ( ViewSettings settings )

overridevirtual

Dispatches renderers.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ setCoordinatesMapper()

void gramods::gmGraphics::PosedSphericalView::setCoordinatesMapper ( std::shared_ptr< CoordinatesMapper > mapper )

Sets the coordinates mapper that should be used to map the 3D surrounding into the 2D view.

XML-attribute: coordinatesMapper

◆ setCubeMapResolution()

void gramods::gmGraphics::PosedSphericalView::setCubeMapResolution ( int res )

Sets the resolution of the intermediate cube map, in pixels.

Default is 2048.

XML-attribute: cubeMapResolution

◆ setLinearInterpolation()

void gramods::gmGraphics::PosedSphericalView::setLinearInterpolation ( bool on )

Turn on or off linear interpolation in the projection from linear graphics to non-linear projection space.

Default is off.

XML-attribute: linearInterpolation

◆ setMakeSquare()

void gramods::gmGraphics::PosedSphericalView::setMakeSquare ( bool on )

When set to true, the output on the view will be square, so that using a fisheye mapper would render the view as a circle instead of an ellipse.

Default is false.

◆ traverse()

void gramods::gmGraphics::PosedSphericalView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/PosedSphericalView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/PosedSphericalView.cpp
