This view mixes the graphics from two or more other views. More...

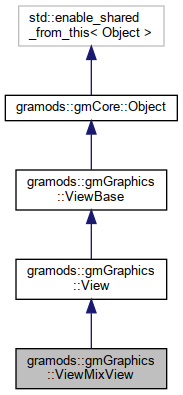

Inheritance diagram for gramods::gmGraphics::ViewMixView:

[legend]

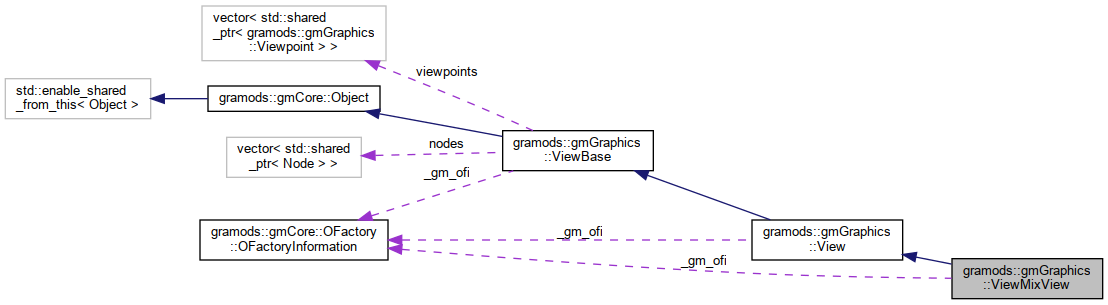

Collaboration diagram for gramods::gmGraphics::ViewMixView:

[legend]

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Appends local renderers to the view settings, forwards rendering to the sub views and mixes the results. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setMixType (std::string)
	Set type of mixing. More...

void	addView (std::shared_ptr< View >)
	Add a view to mix. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

This view mixes the graphics from two or more other views.

Member Function Documentation

void gramods::gmGraphics::ViewMixView::addView ( std::shared_ptr< View > v )

Add a view to mix.

XML-attribute: view

void gramods::gmGraphics::ViewMixView::renderFullPipeline ( ViewSettings settings )

overridevirtual

Appends local renderers to the view settings, forwards rendering to the sub views and mixes the results.

void gramods::gmGraphics::ViewMixView::setMixType ( std::string s )

Set type of mixing.

Default is average. Valid values are

average, showing the per pixel average value of all the views,
difference, showing the per pixel difference between the first and the second added view.
distance, showing the per pixel color distance between the first and the second added view.

XML-attribute: mixType

Valid values are

average, showing the per pixel average value of all the views,
difference, showing the per pixel difference between the first and the second added view.
distance, showing the per pixel color distance between the first and the second added view.

void gramods::gmGraphics::ViewMixView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/ViewMixView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/ViewMixView.cpp
