gramods::gmGraphics::FovPlanarView Class Reference

This view provides skewed frustum projection of the renderers. More...

#include <FovPlanarView.hh>

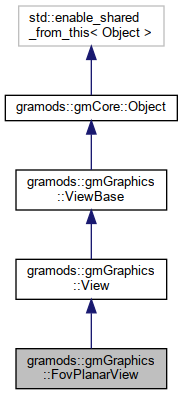

Inheritance diagram for gramods::gmGraphics::FovPlanarView:

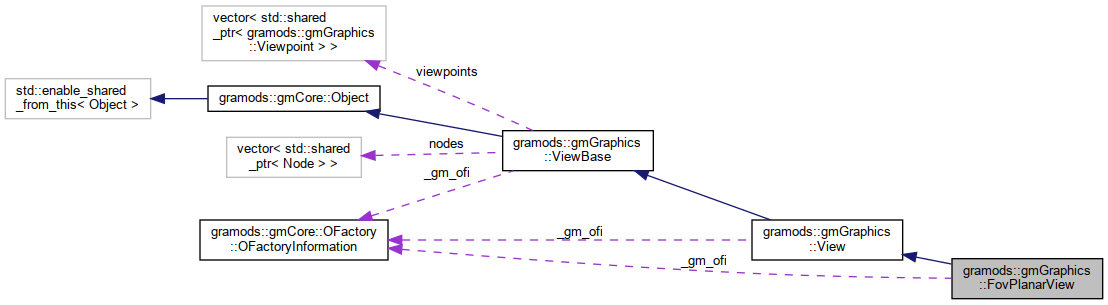

Collaboration diagram for gramods::gmGraphics::FovPlanarView:

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Dispatches specified renders, both method argument and class members. More...
void	setClipPlanes (gmCore::float4 p)
	Sets the clip planes, left, right, bottom, top, in x, y coordinates at distance 1. More...
void	setClipAngles (gmCore::angle4 p)
	Angles between forward direction and the clip planes left, right, bottom and top, in radians. More...
void	setOrientation (Eigen::Quaternionf q)
	Sets the orientation of the View. More...
Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...
void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...
void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...
void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...
Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...
virtual	~Object ()
	Cleaning up internal data. More...
virtual void	initialize ()
	Called to initialize the Object. More...
virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...
bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi
Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi
Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...
Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes
std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

This view provides skewed frustum projection of the renderers.

Member Function Documentation

renderFullPipeline()

void gramods::gmGraphics::FovPlanarView::renderFullPipeline ( ViewSettings  settings )

overridevirtual

Dispatches specified renders, both method argument and class members.

The default implementation calls the renderers but with a default Camera, and should be overloaded by sub classes to implement their respective effects.

Reimplemented from gramods::gmGraphics::ViewBase.

setClipAngles()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_FovPlanarView_param_clipAngles &FovPlanarView::_gm_ofi(& gramods::gmGraphics::FovPlanarView::setClipAngles ( gmCore::angle4  p )

inline

Angles between forward direction and the clip planes left, right, bottom and top, in radians.

Left and bottom angles are positive left-wise and downwards, respectively, while right and top angles are positive right-wise and upwards, respectively.

XML-attribute: clipAngles

See also

operator>>(std::istream &, gmCore::angle &)

setClipPlanes()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_FovPlanarView_param_clipPlanes &FovPlanarView::_gm_ofi(& gramods::gmGraphics::FovPlanarView::setClipPlanes ( gmCore::float4  p )

inline

Sets the clip planes, left, right, bottom, top, in x, y coordinates at distance 1.

XML-attribute: clipPlanes

setOrientation()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_FovPlanarView_param_orientation &FovPlanarView::_gm_ofi(& gramods::gmGraphics::FovPlanarView::setOrientation ( Eigen::Quaternionf  q )

inline

Sets the orientation of the View.

XML-attribute: orientation

See also

gramods::operator>>(std::istream &, Eigen::Quaternionf &)

---

The documentation for this class was generated from the following files:

• /home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/FovPlanarView.hh
• /home/karlu/private/program/gramods/modules/gmGraphics/src/FovPlanarView.cpp
