The SaveView is a view that saves the image generated by another view. More...

#include <SaveView.hh>

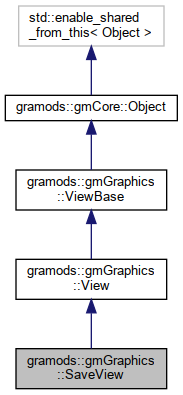

Inheritance diagram for gramods::gmGraphics::SaveView:

[legend]

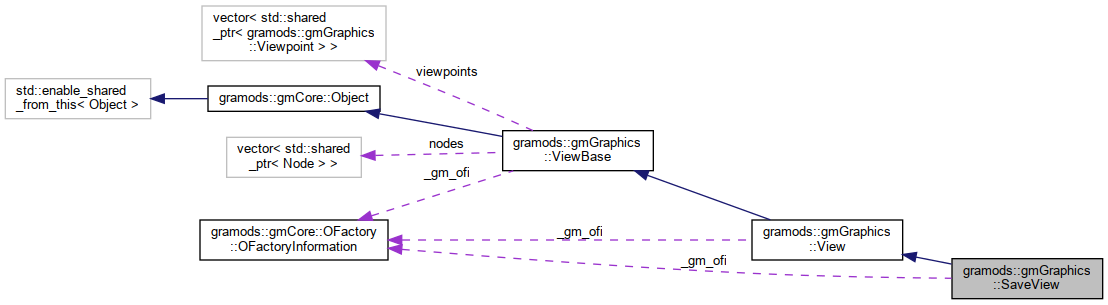

Collaboration diagram for gramods::gmGraphics::SaveView:

[legend]

Classes
struct	Impl

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Forwards rendering to the sub view and saves the result. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setFile (std::filesystem::path file)
	Sets the file path to save the view to. More...

void	setResolution (gmCore::size2 res)
	Sets the resolution to render and save at, regarless of resolution of the view itself. More...

void	setUseFloat (bool on)
	Set to true if the pixel data should be read off and saved in floating point format. More...

bool	getUseFloat ()
	Returns true iff the pixel data are read off and saved in floating point format, false otherwise. More...

void	setUseAlpha (bool on)
	Set to true if the alpha channel should be read off and saved. More...

bool	getUseAlpha ()
	Returns true iff the alpha channel is read off and saved. More...

void	setExit (bool on)
	Activates or deactivates automatic exit when the view has been saved. More...

void	addView (std::shared_ptr< View > view)
	Adds a view that should be saved to file. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

The SaveView is a view that saves the image generated by another view.

Member Function Documentation

◆ addView()

void gramods::gmGraphics::SaveView::addView ( std::shared_ptr< View > view )

Adds a view that should be saved to file.

XML-attribute: view

◆ getUseAlpha()

bool gramods::gmGraphics::SaveView::getUseAlpha ( )

Returns true iff the alpha channel is read off and saved.

◆ getUseFloat()

bool gramods::gmGraphics::SaveView::getUseFloat ( )

Returns true iff the pixel data are read off and saved in floating point format, false otherwise.

◆ renderFullPipeline()

void gramods::gmGraphics::SaveView::renderFullPipeline ( ViewSettings settings )

overridevirtual

Forwards rendering to the sub view and saves the result.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ setExit()

void gramods::gmGraphics::SaveView::setExit ( bool on )

Activates or deactivates automatic exit when the view has been saved.

When converting animation, consider using automatic exit in the ImageTexture. Default is false.

XML-attribute: exit

◆ setFile()

void gramods::gmGraphics::SaveView::setFile ( std::filesystem::path file )

Sets the file path to save the view to.

If a sequence of image files should be saved, then set this as a fprint formatted template, for example "frame_%06d.png". Default value is "SaveView.png".

Supported suffixes are png, jpeg, exr, tiff and pfm. Some of these support alpha and some support float:

Format	Alpha	Float
PNG	*
JPEG
EXR		*
TIFF	*	*
PFM		*

XML-attribute: file

◆ setResolution()

void gramods::gmGraphics::SaveView::setResolution ( gmCore::size2 res )

Sets the resolution to render and save at, regarless of resolution of the view itself.

Default is to use the view resolution.

XML-attribute: resolution

◆ setUseAlpha()

void gramods::gmGraphics::SaveView::setUseAlpha ( bool on )

Set to true if the alpha channel should be read off and saved.

Default is false.

◆ setUseFloat()

void gramods::gmGraphics::SaveView::setUseFloat ( bool on )

Set to true if the pixel data should be read off and saved in floating point format.

Default is off.

◆ traverse()

void gramods::gmGraphics::SaveView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/SaveView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/SaveView.cpp
