The ImageTexture reads image data from a specified file to populate its texture data. More...

#include <ImageTexture.hh>

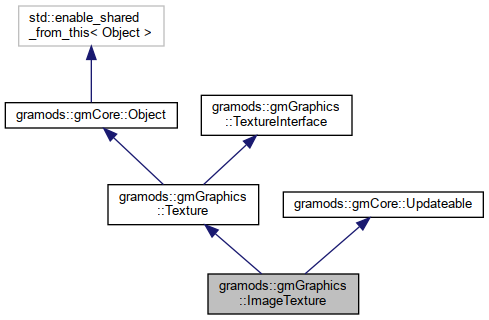

Inheritance diagram for gramods::gmGraphics::ImageTexture:

[legend]

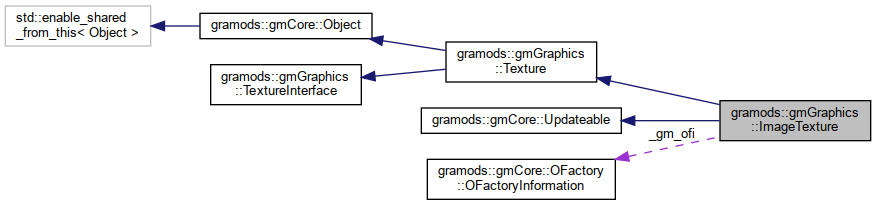

Collaboration diagram for gramods::gmGraphics::ImageTexture:

[legend]

Classes
struct	Impl

Public Member Functions
void	initialize () override
	Called to initialize the Object. More...

void	update (clock::time_point t, size_t) override
	Called by Updateable::updateAll to increment the frame counter. More...

GLuint	updateTexture (size_t frame_number, Eye eye) override
	Updates the texture and returns the ID of the associated GL texture object. More...

void	setFile (std::filesystem::path file)
	Set the file to read image data from. More...

std::filesystem::path	getFile ()
	Returns the currently set file path or pattern. More...

void	setRange (gmCore::size2 range)
	Sets the range (inclusive) of frames to read. More...

void	setAutoRange (bool on)
	Activates auto range, with which the range of images is guessed based on the available files with the specified name pattern. More...

void	setLoop (bool on)
	Activates or deactivates looping the animation. More...

void	setLogProgress (bool on)
	Activates or deactivates logging progress information. More...

void	setExit (bool on)
	Activates or deactivates automatic exit when the specified range has been covered. More...

Public Member Functions inherited from gramods::gmGraphics::Texture
virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Public Member Functions inherited from gramods::gmCore::Updateable
	Updateable (int priority=0)
	Configures the Updateable properties to the specified priority. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Public Types inherited from gramods::gmCore::Updateable
typedef std::chrono::steady_clock	clock

Static Public Member Functions inherited from gramods::gmCore::Updateable
static void	updateAll (clock::time_point t=clock::now(), std::optional< size_t > frame=std::nullopt)
	Updates all currently instanciated updateable objects. More...

Detailed Description

The ImageTexture reads image data from a specified file to populate its texture data.

Member Function Documentation

◆ getFile()

std::filesystem::path gramods::gmGraphics::ImageTexture::getFile ( )

Returns the currently set file path or pattern.

◆ initialize()

void gramods::gmGraphics::ImageTexture::initialize ( )

overridevirtual

Called to initialize the Object.

This should be called once only!

Sub classes should override this method to make use of set parameter data. They should also always call its base class' implementation as well.

Reimplemented from gramods::gmCore::Object.

◆ setAutoRange()

void gramods::gmGraphics::ImageTexture::setAutoRange ( bool on )

Activates auto range, with which the range of images is guessed based on the available files with the specified name pattern.

◆ setExit()

void gramods::gmGraphics::ImageTexture::setExit ( bool on )

Activates or deactivates automatic exit when the specified range has been covered.

Default is false. Loop has to be false for this to work.

XML-attribute: exit

◆ setFile()

void gramods::gmGraphics::ImageTexture::setFile ( std::filesystem::path file )

Set the file to read image data from.

If a sequence of image files should be read, set this as a fprint formatted template and use setRange to specify the range. For example if file is set to "image_%05d.png" and range is set to 1-199, then images from "image_00000.png" to "image_00199.png" will be read.

XML-attribute: file

◆ setLogProgress()

void gramods::gmGraphics::ImageTexture::setLogProgress ( bool on )

Activates or deactivates logging progress information.

Default is false.

XML-attribute: logProgress

◆ setLoop()

void gramods::gmGraphics::ImageTexture::setLoop ( bool on )

Activates or deactivates looping the animation.

Default is false.

XML-attribute: loop

◆ setRange()

void gramods::gmGraphics::ImageTexture::setRange ( gmCore::size2 range )

Sets the range (inclusive) of frames to read.

This assumes that the file name specified with setFile is a printf formatted template.

XML-attribute: range

◆ update()

void gramods::gmGraphics::ImageTexture::update	(	clock::time_point	t,
		size_t
	)

overridevirtual

Called by Updateable::updateAll to increment the frame counter.

Implements gramods::gmCore::Updateable.

◆ updateTexture()

GLuint gramods::gmGraphics::ImageTexture::updateTexture	(	size_t	frame_number,
		Eye	eye
	)

overridevirtual

Updates the texture and returns the ID of the associated GL texture object.

Must be called with GL context. Observe also that this method may perform off-screen rendering.

Parameters

frame_number	The current frame being rendered. This number should increment by one for each frame, however it may wrap around and start over at zero.
eye	Eye for which the texture is requested. An implementation may use different textures for different eyes or may reuse the same texture for all eyes.

Returns: OpenGL texture ID of the updated texture

Implements gramods::gmGraphics::TextureInterface.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/ImageTexture.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/ImageTexture.cpp
