The ChromaKeyView filters another view making it transparent where the chroma key is matched within the CbCr color space within a specified tolerance. More...

#include <ChromaKeyView.hh>

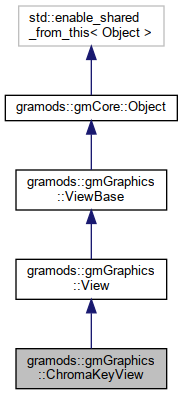

Inheritance diagram for gramods::gmGraphics::ChromaKeyView:

[legend]

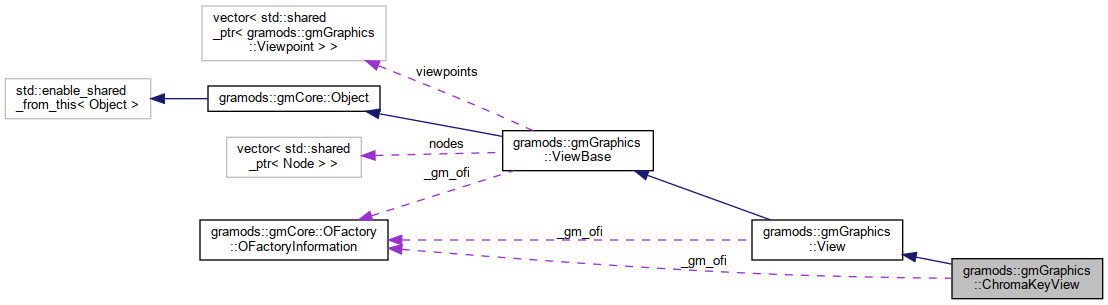

Collaboration diagram for gramods::gmGraphics::ChromaKeyView:

[legend]

Classes
struct	Impl

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Appends local renderers to the view settings, forwards rendering to the sub views and mixes the results. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	addView (std::shared_ptr< View >)
	Adds a view to mask with chroma key. More...

void	setKey (gmCore::float3 key)
	Set the RGB key to mask with. More...

void	setTolerance (gmCore::float2 tol)
	Set the minimum and maximum tolerances against the key when masking. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

The ChromaKeyView filters another view making it transparent where the chroma key is matched within the CbCr color space within a specified tolerance.

Member Function Documentation

◆ addView()

void gramods::gmGraphics::ChromaKeyView::addView ( std::shared_ptr< View > view )

Adds a view to mask with chroma key.

XML-attribute: view

◆ renderFullPipeline()

void gramods::gmGraphics::ChromaKeyView::renderFullPipeline ( ViewSettings settings )

overridevirtual

Appends local renderers to the view settings, forwards rendering to the sub views and mixes the results.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ setKey()

void gramods::gmGraphics::ChromaKeyView::setKey ( gmCore::float3 key )

Set the RGB key to mask with.

Default is [0, 1, 0].

XML-attribute: key

◆ setTolerance()

void gramods::gmGraphics::ChromaKeyView::setTolerance ( gmCore::float2 tol )

Set the minimum and maximum tolerances against the key when masking.

This will specify a ramp in decimal CrCb (2D) color space. Default is [0.48, 0.50].

XML-attribute: tolerance

◆ traverse()

void gramods::gmGraphics::ChromaKeyView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/ChromaKeyView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/ChromaKeyView.cpp
