The TiledView tiles up a view into sub tiles each containing a separate View. More...

#include <TiledView.hh>

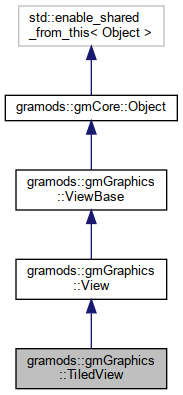

Inheritance diagram for gramods::gmGraphics::TiledView:

[legend]

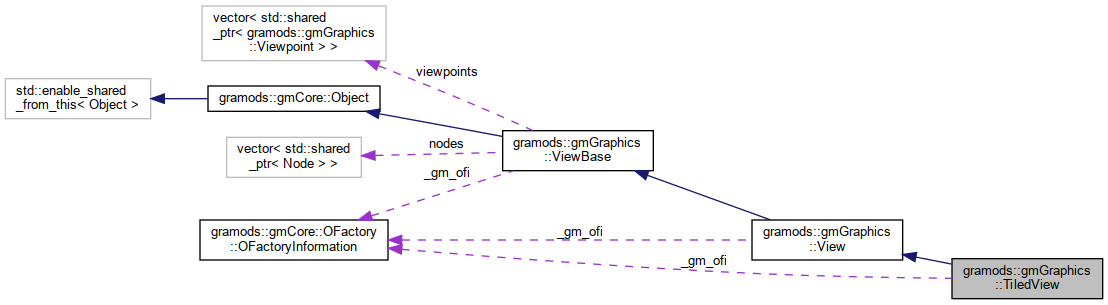

Collaboration diagram for gramods::gmGraphics::TiledView:

[legend]

Classes
struct	Impl

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Appends local renderers to the view settings and forwards rendering to the sub views of this tiled view. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	addTileLocation (gmCore::size4 c)
	Adds a location and span that is used when adding views. More...

void	addView (std::shared_ptr< View > view)
	Adds a view to the previously specified tile location. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

The TiledView tiles up a view into sub tiles each containing a separate View.

Example usage:

<SomeWindow>
  <TiledView>
    <param name="tileLocation" value="0 2 1 1"/>
    <SomeView ... />
    <param name="tileLocation" value="1 2 1 1"/>
    <SomeView ... />
    <param name="tileLocation" value="0 0 2 2"/>
    <SomeView ... />
  </TiledView>
</SdlWindow>

Member Function Documentation

◆ addTileLocation()

void gramods::gmGraphics::TiledView::addTileLocation ( gmCore::size4 c )

Adds a location and span that is used when adding views.

Format is [row col rowspan colspan] where row and col start at zero at top left corner.

XML-attribute: tileLocation

◆ addView()

void gramods::gmGraphics::TiledView::addView ( std::shared_ptr< View > view )

Adds a view to the previously specified tile location.

XML-attribute: view

◆ renderFullPipeline()

void gramods::gmGraphics::TiledView::renderFullPipeline ( ViewSettings settings )

overridevirtual

Appends local renderers to the view settings and forwards rendering to the sub views of this tiled view.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ traverse()

void gramods::gmGraphics::TiledView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/TiledView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/TiledView.cpp
