The RemapperView remaps another view from the mapping expressed by one CoordinatesMapper into the mapping expressed by another, in a single step. More...

#include <RemapperView.hh>

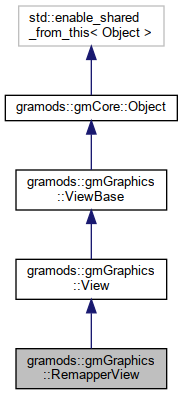

Inheritance diagram for gramods::gmGraphics::RemapperView:

[legend]

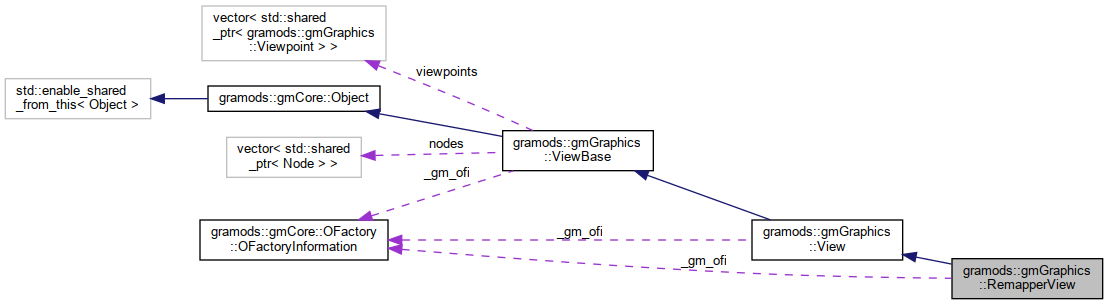

Collaboration diagram for gramods::gmGraphics::RemapperView:

[legend]

Classes
struct	Impl

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override
	Appends local renderers to the view settings, forwards rendering to the sub views and mixes the results. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	addView (std::shared_ptr< View >)
	Adds a view to mask with chroma key. More...

void	setFrom (std::shared_ptr< CoordinatesMapper >)
	Sets the mapper to remap from, describing the mapping of the source, the input. More...

void	setTo (std::shared_ptr< CoordinatesMapper >)
	Sets the mapper to remap to, describing the mapping of the target, the result. More...

void	setViewOffset (float)
	Sets an offset for the view position. More...

void	setSphereRadius (float)
	Sets a sphere radius for the remapping. More...

void	setOrientation (gmCore::angle2)
	Sets an orientation offset for the remapping. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

The RemapperView remaps another view from the mapping expressed by one CoordinatesMapper into the mapping expressed by another, in a single step.

Member Function Documentation

◆ addView()

void gramods::gmGraphics::RemapperView::addView ( std::shared_ptr< View > view )

Adds a view to mask with chroma key.

XML-attribute: view

◆ renderFullPipeline()

void gramods::gmGraphics::RemapperView::renderFullPipeline ( ViewSettings settings )

overridevirtual

Appends local renderers to the view settings, forwards rendering to the sub views and mixes the results.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ setFrom()

void gramods::gmGraphics::RemapperView::setFrom ( std::shared_ptr< CoordinatesMapper > from )

Sets the mapper to remap from, describing the mapping of the source, the input.

XML-attribute: from

◆ setOrientation()

void gramods::gmGraphics::RemapperView::setOrientation ( gmCore::angle2 a )

Sets an orientation offset for the remapping.

XML-attribute: orientation

◆ setSphereRadius()

void gramods::gmGraphics::RemapperView::setSphereRadius ( float r )

Sets a sphere radius for the remapping.

This component does not make intersection or 3D rendering, so this number will be used together with viewOffset to calculate a sphere orientation. Default is 1.0.

XML-attribute: sphereRadius

◆ setTo()

void gramods::gmGraphics::RemapperView::setTo ( std::shared_ptr< CoordinatesMapper > to )

Sets the mapper to remap to, describing the mapping of the target, the result.

XML-attribute: to

◆ setViewOffset()

void gramods::gmGraphics::RemapperView::setViewOffset ( float q )

Sets an offset for the view position.

This component does not make intersection or 3D rendering, so this number will be used together with sphereRadius to calculate a sphere orientation. Default is 0.0;

XML-attribute: viewOffset

◆ traverse()

void gramods::gmGraphics::RemapperView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/RemapperView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/RemapperView.cpp
