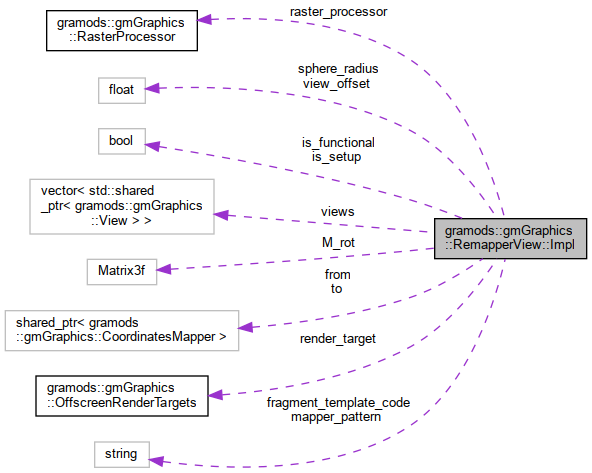

Collaboration diagram for gramods::gmGraphics::RemapperView::Impl:
Public Member Functions | |
| std::string | createFragmentCode () |
| void | renderFullPipeline (ViewSettings settings) |
Public Attributes | |
| OffscreenRenderTargets | render_target |
| RasterProcessor | raster_processor |
| bool | is_setup = false |
| bool | is_functional = false |
| std::vector< std::shared_ptr< View > > | views |
| std::shared_ptr< CoordinatesMapper > | from |
| std::shared_ptr< CoordinatesMapper > | to |
| float | view_offset = 0.f |
| float | sphere_radius = 1.f |
| Eigen::Matrix3f | M_rot = Eigen::Matrix3f::Identity() |
Static Public Attributes | |
| static const std::string | fragment_template_code |
| static const std::string | mapper_pattern = "MAPPER;" |
Member Data Documentation
◆ fragment_template_code
|
static |
Initial value:
=
R"lang=glsl(
#version 330 core
MAPPER;
uniform mat3 M_rot;
uniform sampler2D tex;
in vec2 position;
out vec4 fragColor;
void main() {
vec3 pix_dir;
bool good = mapTo3D(position, pix_dir);
if (!good) {
fragColor = vec4(0, 0, 0, 0);
return;
}
vec2 v_uv;
good = mapTo2D(M_rot * pix_dir, v_uv);
fragColor = texture(tex, 0.5 + 0.5 * v_uv);
}
)lang=glsl"
The documentation for this struct was generated from the following file:
- /home/karlu/private/program/gramods/modules/gmGraphics/src/RemapperView.cpp
