The base of Views that support multiscopic perspectives. More...

#include <MultiscopicView.hh>

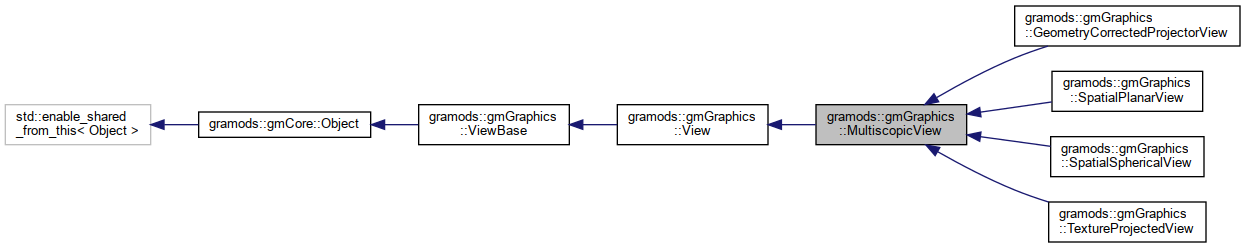

Inheritance diagram for gramods::gmGraphics::MultiscopicView:

[legend]

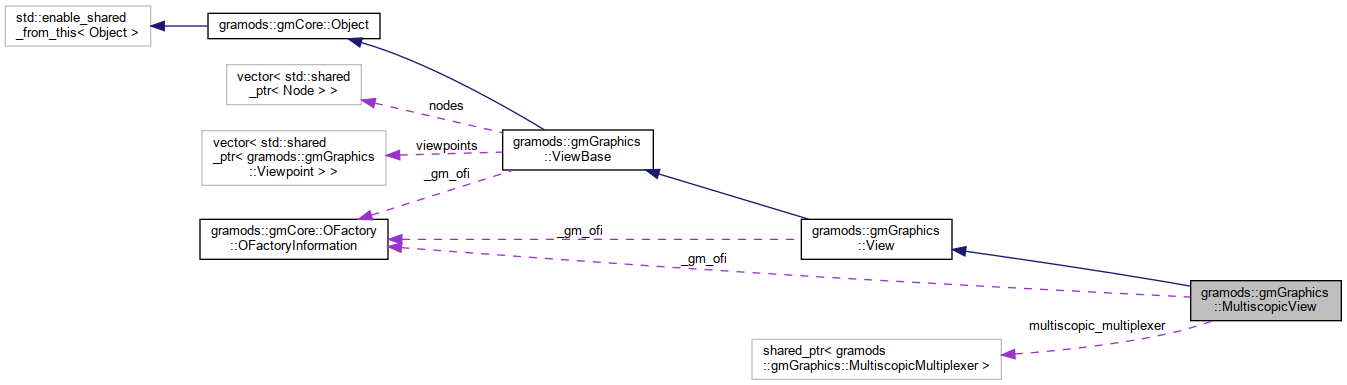

Collaboration diagram for gramods::gmGraphics::MultiscopicView:

[legend]

Public Member Functions
void	renderFullPipeline (ViewSettings settings) override final
	Dispatches specified renders, both method argument and class members. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setMultiscopicMultiplexer (std::shared_ptr< MultiscopicMultiplexer > sm)
	Sets the multiscopic multiplexing to use for rendering. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Protected Member Functions
virtual void	renderFullPipeline (ViewSettings settings, Eye eye)=0
	Renders one eye at a time, or just a mono eye. More...

Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes
std::shared_ptr< MultiscopicMultiplexer >	multiscopic_multiplexer

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

The base of Views that support multiscopic perspectives.

Member Function Documentation

◆ renderFullPipeline() [1/2]

void gramods::gmGraphics::MultiscopicView::renderFullPipeline ( ViewSettings settings )

finaloverridevirtual

Dispatches specified renders, both method argument and class members.

The default implementation calls the renderers but with a default Camera, and should be overloaded by sub classes to implement their respective effects.

Reimplemented from gramods::gmGraphics::ViewBase.

◆ renderFullPipeline() [2/2]

virtual void gramods::gmGraphics::MultiscopicView::renderFullPipeline	(	ViewSettings	settings,
		Eye	eye
	)

protectedpure virtual

Renders one eye at a time, or just a mono eye.

Implemented in gramods::gmGraphics::TextureProjectedView, gramods::gmGraphics::SpatialSphericalView, and gramods::gmGraphics::GeometryCorrectedProjectorView.

◆ setMultiscopicMultiplexer()

gramods::gmCore::OFactory::PointerSetterInsert gm_ofi_MultiscopicView_pointer_multiscopicMultiplexer &MultiscopicView::_gm_ofi(& gramods::gmGraphics::MultiscopicView::setMultiscopicMultiplexer ( std::shared_ptr< MultiscopicMultiplexer > sm )

inline

Sets the multiscopic multiplexing to use for rendering.

If not set, monoscopic rendering will be used.

XML-attribute: multiscopicMultiplexer

◆ traverse()

void gramods::gmGraphics::MultiscopicView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

Reimplemented in gramods::gmGraphics::TextureProjectedView, and gramods::gmGraphics::SpatialSphericalView.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/MultiscopicView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/MultiscopicView.cpp
