Geometrically corrected projector view, a view that is undistorted by geometrical projection. More...

#include <GeometryCorrectedProjectorView.hh>

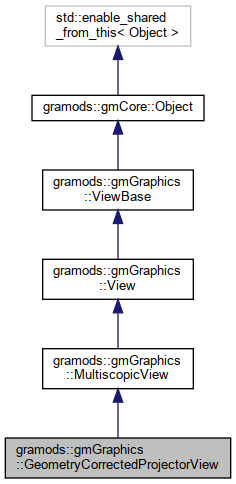

Inheritance diagram for gramods::gmGraphics::GeometryCorrectedProjectorView:

[legend]

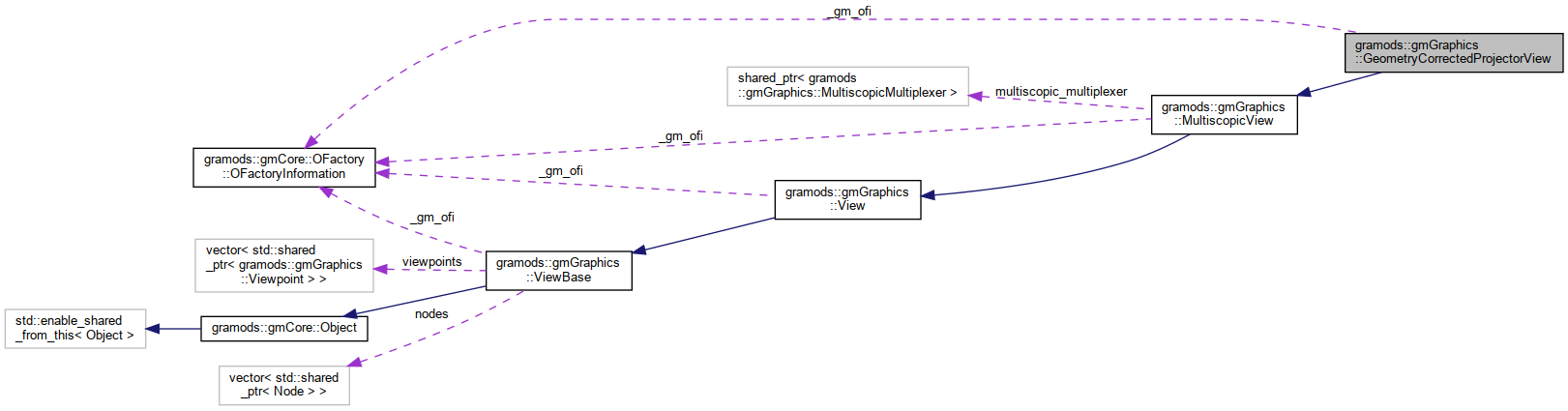

Collaboration diagram for gramods::gmGraphics::GeometryCorrectedProjectorView:

[legend]

Classes
struct	Impl

Public Member Functions
void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setBufferWidth (int W)
	Sets the resolution of the intermediate buffer, in pixels. More...

void	setBufferHeight (int H)
	Sets the resolution of the intermediate buffer, in pixels. More...

void	setLinearInterpolation (bool on)
	Turn on or off linear interpolation in the projection from linear graphics to non-linear projection space. More...

void	setTopLeftCorner (Eigen::Vector3f tlc)
	Set the top left corner of the projection. More...

void	setBottomRightCorner (Eigen::Vector3f brc)
	Set the bottom right corner of the projection. More...

void	setPosition (Eigen::Vector3f p)
	Set the position of the optic center of the projection. More...

void	setExtrinsics (gmCore::float12 M)
	Set the position and orientation of the projection as an extrinsics matrix (12 values, 4 column 3-vectors, row major): More...

void	setIntrinsics (gmCore::float4 m)
	Set the projection shape, as intrinsics (fx fy cx cy), in unitless values assuming a sensor size of 1x1. More...

void	setClipAngles (gmCore::angle4 a)
	Angles between forward direction and the clip planes left, right, bottom and top, in radians. More...

void	setOrientation (Eigen::Quaternionf q)
	Set orientation of the projection, of the extrinsics. More...

void	setGeometry (std::shared_ptr< Geometry > g)
	Set the geometry to use for projection correction. More...

Public Member Functions inherited from gramods::gmGraphics::MultiscopicView
void	renderFullPipeline (ViewSettings settings) override final
	Dispatches specified renders, both method argument and class members. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setMultiscopicMultiplexer (std::shared_ptr< MultiscopicMultiplexer > sm)
	Sets the multiscopic multiplexing to use for rendering. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::MultiscopicView
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Protected Member Functions
void	renderFullPipeline (ViewSettings settings, Eye eye) override
	Renders one eye at a time, or just a mono eye. More...

Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Additional Inherited Members
Protected Attributes inherited from gramods::gmGraphics::MultiscopicView
std::shared_ptr< MultiscopicMultiplexer >	multiscopic_multiplexer

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

Geometrically corrected projector view, a view that is undistorted by geometrical projection.

Use this view if there is a projector that shows its image on a geometrically non-complex surface (such as a flat, cylindrical or spherical surface) and the observer, or viewer, is not co-located with this projector but still wants a non-distorted view.

To function correctly, this view needs to be configured with three settings: position, orientation and frustum shape.

The estimation of the frustum shape from specified corners will not* control the orientation of the projection, but rather take orientation into account. This means that the corners positions of the projection can be measured directly on the (potentially non-linear) projection surface.

Member Function Documentation

◆ renderFullPipeline()

void gramods::gmGraphics::GeometryCorrectedProjectorView::renderFullPipeline	(	ViewSettings	settings,
		Eye	eye
	)

overrideprotectedvirtual

Renders one eye at a time, or just a mono eye.

Implements gramods::gmGraphics::MultiscopicView.

◆ setBottomRightCorner()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setBottomRightCorner ( Eigen::Vector3f brc )

Set the bottom right corner of the projection.

XML-attribute: bottomRightCorner

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ setBufferHeight()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setBufferHeight ( int H )

Sets the resolution of the intermediate buffer, in pixels.

Default is 2048.

XML-attribute: bufferHeight

◆ setBufferWidth()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setBufferWidth ( int W )

Sets the resolution of the intermediate buffer, in pixels.

Default is 2048.

XML-attribute: bufferWidth

◆ setClipAngles()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setClipAngles ( gmCore::angle4 a )

Angles between forward direction and the clip planes left, right, bottom and top, in radians.

Left and bottom angles increase left-wise and downwards, respectively, while right and top angles increase right-wise and upwards, respectively.

XML-attribute: clipAngles

See also: operator>>(std::istream &, gmCore::angle &)

◆ setExtrinsics()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setExtrinsics ( gmCore::float12 M )

Set the position and orientation of the projection as an extrinsics matrix (12 values, 4 column 3-vectors, row major):

XML-attribute: extrinsics

◆ setGeometry()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setGeometry ( std::shared_ptr< Geometry > g )

Set the geometry to use for projection correction.

XML-attribute: geometry

◆ setIntrinsics()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setIntrinsics ( gmCore::float4 m )

Set the projection shape, as intrinsics (fx fy cx cy), in unitless values assuming a sensor size of 1x1.

XML-attribute: intrinsics

◆ setLinearInterpolation()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setLinearInterpolation ( bool on )

Turn on or off linear interpolation in the projection from linear graphics to non-linear projection space.

Default is off.

XML-attribute: linearInterpolation

◆ setOrientation()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setOrientation ( Eigen::Quaternionf q )

Set orientation of the projection, of the extrinsics.

XML-attribute: orientation

See also: gramods::operator>>(std::istream &, Eigen::Quaternionf &)

◆ setPosition()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setPosition ( Eigen::Vector3f p )

Set the position of the optic center of the projection.

XML-attribute: position

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ setTopLeftCorner()

void gramods::gmGraphics::GeometryCorrectedProjectorView::setTopLeftCorner ( Eigen::Vector3f tlc )

Set the top left corner of the projection.

XML-attribute: topLeftCorner

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ traverse()

void gramods::gmGraphics::GeometryCorrectedProjectorView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/GeometryCorrectedProjectorView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/GeometryCorrectedProjectorView.cpp
