The TextureProjectedView uses a texture to define the 3D position of each render target buffer pixel, and then projects the specified renderers onto this "surface", from the viewpoint. More...

#include <TextureProjectedView.hh>

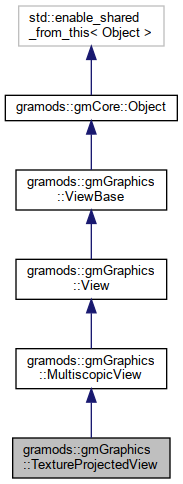

Inheritance diagram for gramods::gmGraphics::TextureProjectedView:

[legend]

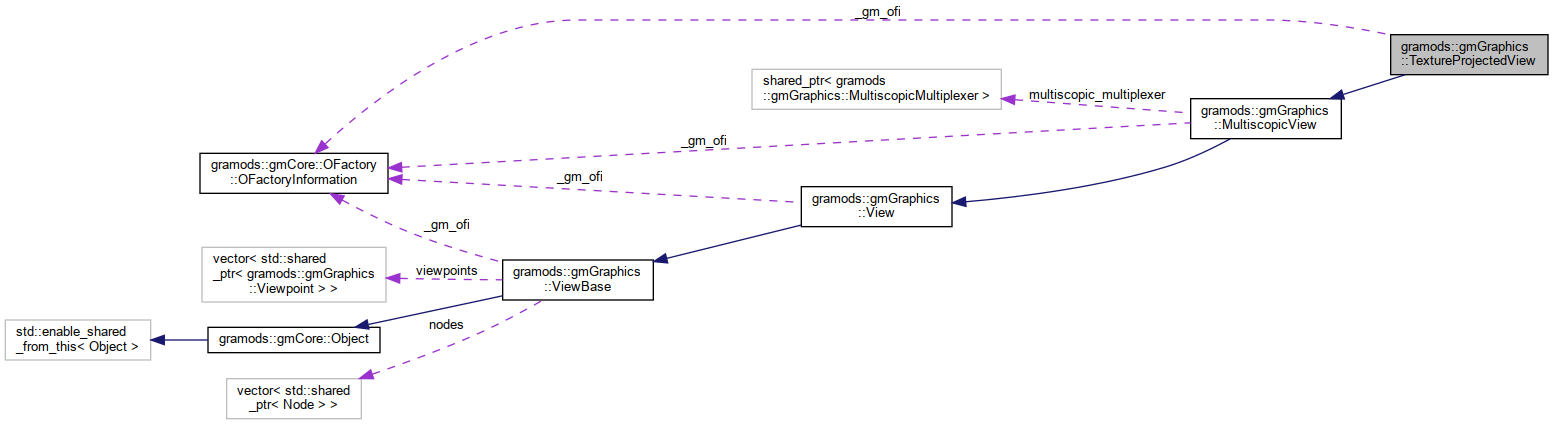

Collaboration diagram for gramods::gmGraphics::TextureProjectedView:

[legend]

Classes
struct	Impl

Public Member Functions
void	setBufferResolution (gmCore::size2 R)
	Sets the resolution of the intermediate buffer, in pixels. More...

void	setLinearInterpolation (bool on)
	Turn on or off linear interpolation in the projection from linear graphics to non-linear projection space. More...

void	renderFullPipeline (ViewSettings settings, Eye eye) override
	Appends local renderers to the view settings, renders the views and projects the result onto the texture's "surface", from the viewpoint. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setTexture (std::shared_ptr< TextureInterface > tex)
	Sets the Texture to use for warping coordinates. More...

void	setEdgeToEdge (bool on)
	De/activates edge-to-edge mode. More...

void	setWarpScale (Eigen::Vector3f scale)
	Sets a scaling to the texture values, so that the 3D position is calculated by p' = p * scale + offset. More...

void	setWarpOffset (Eigen::Vector3f offset)
	Sets an offset to add to the texture values, so that the 3D position is calculated by p' = p * scale + offset. More...

Public Member Functions inherited from gramods::gmGraphics::MultiscopicView
void	renderFullPipeline (ViewSettings settings) override final
	Dispatches specified renders, both method argument and class members. More...

void	setMultiscopicMultiplexer (std::shared_ptr< MultiscopicMultiplexer > sm)
	Sets the multiscopic multiplexing to use for rendering. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::MultiscopicView
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::MultiscopicView
std::shared_ptr< MultiscopicMultiplexer >	multiscopic_multiplexer

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

The TextureProjectedView uses a texture to define the 3D position of each render target buffer pixel, and then projects the specified renderers onto this "surface", from the viewpoint.

This is useful for rendering a dynamic view on a static projection surface.

Member Function Documentation

◆ renderFullPipeline()

void gramods::gmGraphics::TextureProjectedView::renderFullPipeline	(	ViewSettings	settings,
		Eye	eye
	)

overridevirtual

Appends local renderers to the view settings, renders the views and projects the result onto the texture's "surface", from the viewpoint.

Implements gramods::gmGraphics::MultiscopicView.

◆ setBufferResolution()

void gramods::gmGraphics::TextureProjectedView::setBufferResolution ( gmCore::size2 R )

Sets the resolution of the intermediate buffer, in pixels.

Default is 2048 x 2048.

XML-attribute: bufferResolution

◆ setEdgeToEdge()

void gramods::gmGraphics::TextureProjectedView::setEdgeToEdge ( bool on )

De/activates edge-to-edge mode.

If set to true, the middle of the border texel values of the texture correspond to the location of the edge of the pixel buffer to render to. Default is false, meaning that standard OpenGL texture coordinate behavior is used, which probably is what you want if your texture has the same resolution as the render target buffer.

XML-attribute: edgeToEdge

◆ setLinearInterpolation()

void gramods::gmGraphics::TextureProjectedView::setLinearInterpolation ( bool on )

Turn on or off linear interpolation in the projection from linear graphics to non-linear projection space.

Default is off.

XML-attribute: linearInterpolation

◆ setTexture()

void gramods::gmGraphics::TextureProjectedView::setTexture ( std::shared_ptr< TextureInterface > tex )

Sets the Texture to use for warping coordinates.

XML-attribute: texture

◆ setWarpOffset()

void gramods::gmGraphics::TextureProjectedView::setWarpOffset ( Eigen::Vector3f offset )

Sets an offset to add to the texture values, so that the 3D position is calculated by p' = p * scale + offset.

Default is [ 0, 0, 0 ].

XML-attribute: warpOffset

◆ setWarpScale()

void gramods::gmGraphics::TextureProjectedView::setWarpScale ( Eigen::Vector3f scale )

Sets a scaling to the texture values, so that the 3D position is calculated by p' = p * scale + offset.

Default is [ 1, 1, 1 ].

XML-attribute: warpScale

◆ traverse()

void gramods::gmGraphics::TextureProjectedView::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmGraphics::MultiscopicView.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/TextureProjectedView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/TextureProjectedView.cpp
