An SDL window implementation. More...

#include <SdlWindow.hh>

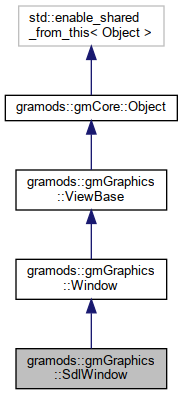

Inheritance diagram for gramods::gmGraphics::SdlWindow:

[legend]

Collaboration diagram for gramods::gmGraphics::SdlWindow:

[legend]

Public Member Functions
void	initialize () override
	Called to initialize the Object. More...

void	makeGLContextCurrent () override
	Asks the Window to make its GL context current. More...

gmCore::size2	getSize ()
	Returns the size of the drawable canvas of this window, in pixels. More...

void	close () override
	Close window. More...

void	setUseQuadBuffers (bool on)
	Sets if quad buffers should be requested for the GL context. More...

void	setGLMajor (int v)
	Sets the major version to be requested for the GL context in this Window. More...

void	setGLMinor (int v)
	Sets the minor version to be requested for the GL context in this Window. More...

void	setGLProfile (std::string s)
	Sets the profile to be requested for the GL context in this Window. More...

void	setContext (std::shared_ptr< gmCore::SdlContext > ctx)
	The SDL context. More...

void	processEvents () override
	Triggers the windows to process its incoming events. More...

bool	isOpen () override
	Returns true as long as the window is open. More...

void	swap () override
	Finalizes the rendering and swaps the render buffers to show the newly rendered material. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmGraphics::Window
void	renderFullPipeline (ViewSettings settings) override
	Dispatches specified renders, both method argument and class members, to the views in this window. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	addView (std::shared_ptr< View > view)
	Adds a view to the window. More...

virtual void	setFullscreen (bool on)
	Activates or deactivates fullscreen mode. More...

virtual void	setDisplay (size_t N)
	Set on which display the window should be shown. More...

virtual void	setSize (gmCore::size2 s)
	Sets the size of the drawable canvas of this window, in pixels. More...

virtual void	setPosition (gmCore::int2 p)
	Sets the position of the window. More...

virtual void	setTitle (std::string t)
	Sets the title of the windows. More...

virtual void	setBackgroundColor (gmCore::float4 c)
	Set the background color of the window. More...

virtual bool	handleEvent (event *)
	Internal events handler, called from processEvents(). More...

void	addEventHandler (std::function< bool(const event )> fun, void tag)
	Registers an event handler associated with the specified tag. More...

void	removeEventHandler (void *tag)
	Removes the event handler associnated with the specified tag. More...

virtual void	sync ()
	Calls glFinish on the GL context. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

virtual std::string	getDefaultKey ()
	Returns the default key for the Object when automatically instantiated in a Configuration, i.e. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::Window
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::Window
std::vector< std::shared_ptr< View > >	views

bool	fullscreen = false

size_t	display = 0

std::string	title = "untitled gramods window"

gmCore::size2	size = {640, 480}

gmCore::int2	position

gmCore::float4	background_color = {0.f, 0.f, 0.f, 0.f}

std::unordered_map< void , std::function< bool(const event )> >	event_handlers

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

An SDL window implementation.

Member Function Documentation

◆ close()

void gramods::gmGraphics::SdlWindow::close ( )

overridevirtual

Close window.

Implements gramods::gmGraphics::Window.

◆ getSize()

gmCore::size2 gramods::gmGraphics::SdlWindow::getSize ( )

virtual

Returns the size of the drawable canvas of this window, in pixels.

Reimplemented from gramods::gmGraphics::Window.

◆ initialize()

void gramods::gmGraphics::SdlWindow::initialize ( )

overridevirtual

Called to initialize the Object.

This should be called once only!

Sub classes should override this method to make use of set parameter data. They should also always call its base class' implementation as well.

Reimplemented from gramods::gmCore::Object.

◆ isOpen()

bool gramods::gmGraphics::SdlWindow::isOpen ( )

overridevirtual

Returns true as long as the window is open.

This does not necessarily mean that the window is visible.

Reimplemented from gramods::gmGraphics::Window.

◆ makeGLContextCurrent()

void gramods::gmGraphics::SdlWindow::makeGLContextCurrent ( )

overridevirtual

Asks the Window to make its GL context current.

This is called automatically by the renderFullPipeline method.

Implements gramods::gmGraphics::Window.

◆ processEvents()

void gramods::gmGraphics::SdlWindow::processEvents ( )

overridevirtual

Triggers the windows to process its incoming events.

This must be called at even intervals for the window to behave properly.

Implements gramods::gmGraphics::Window.

◆ setContext()

gramods::gmCore::OFactory::PointerSetterInsert gm_ofi_SdlWindow_pointer_context &SdlWindow::_gm_ofi(& gramods::gmGraphics::SdlWindow::setContext ( std::shared_ptr< gmCore::SdlContext > ctx )

inline

The SDL context.

Providing the context pointer to the SDL window is not strictly necessary, but putting the SDL context here ensures that it is not destroyed until the SdlWindow has been destroyed.

XML-attribute: context

◆ setGLMajor()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_SdlWindow_param_GLMajor &SdlWindow::_gm_ofi(& gramods::gmGraphics::SdlWindow::setGLMajor ( int v )

inline

Sets the major version to be requested for the GL context in this Window.

XML-attribute: GLMajor

◆ setGLMinor()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_SdlWindow_param_GLMinor &SdlWindow::_gm_ofi(& gramods::gmGraphics::SdlWindow::setGLMinor ( int v )

inline

Sets the minor version to be requested for the GL context in this Window.

XML-attribute: GLMinor

◆ setGLProfile()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_SdlWindow_param_GLProfile &SdlWindow::_gm_ofi(& gramods::gmGraphics::SdlWindow::setGLProfile ( std::string s )

inline

Sets the profile to be requested for the GL context in this Window.

Valid values are CORE, ES and COMPATIBILITY.

XML-attribute: GLProfile

◆ setUseQuadBuffers()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_SdlWindow_param_useQuadBuffers &SdlWindow::_gm_ofi(& gramods::gmGraphics::SdlWindow::setUseQuadBuffers ( bool on )

inline

Sets if quad buffers should be requested for the GL context.

XML-attribute: useQuadBuffers

◆ swap()

void gramods::gmGraphics::SdlWindow::swap ( )

overridevirtual

Finalizes the rendering and swaps the render buffers to show the newly rendered material.

Implements gramods::gmGraphics::Window.

◆ traverse()

void gramods::gmGraphics::SdlWindow::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/SdlWindow.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/SdlWindow.cpp
