Analogs filter that re-maps analog indices to a standard order for application compatibility between tracker systems. More...

#include <AnalogsMapper.hh>

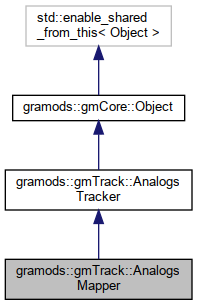

Inheritance diagram for gramods::gmTrack::AnalogsMapper:

[legend]

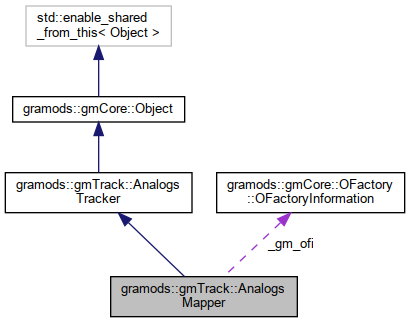

Collaboration diagram for gramods::gmTrack::AnalogsMapper:

[legend]

Classes
struct	AnalogIndex
	Standard analogs indices, for compatibility. More...

Public Member Functions
void	setAnalogsTracker (std::shared_ptr< AnalogsTracker > bt)
	Sets the analogs tracker to re-map. More...

void	addMapping (gmCore::size2 m)
	Adds a mapping in the form of two integer indices: from and to button index, respectively. More...

void	setVerticalAnalog (int idx)
	Sets which analog to map to vertical analog, as an index starting at zero. More...

void	setHorizontalAnalog (int idx)
	Sets which analog to map to horizontal analog, as an index starting at zero. More...

void	setTriggerAnalog (int idx)
	Sets which analog to map to trigger analog, as an index starting at zero. More...

bool	getAnalogs (AnalogsSample &p) override
	Replaces the contents of p with button data. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmTrack::AnalogsTracker
virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Public Types inherited from gramods::gmTrack::AnalogsTracker
typedef std::chrono::steady_clock	clock

Detailed Description

Analogs filter that re-maps analog indices to a standard order for application compatibility between tracker systems.

Preferred order is vertical, horizontal and then trigger, followed by any other analog input.

Member Function Documentation

◆ addMapping()

void gramods::gmTrack::AnalogsMapper::addMapping ( gmCore::size2 m )

Adds a mapping in the form of two integer indices: from and to button index, respectively.

XML-attribute: mapping

◆ getAnalogs()

bool gramods::gmTrack::AnalogsMapper::getAnalogs ( AnalogsSample & p )

overridevirtual

Replaces the contents of p with button data.

Returns true if data could be read, false otherwise. Use sample time to check if data are fresh.

Implements gramods::gmTrack::AnalogsTracker.

◆ setAnalogsTracker()

void gramods::gmTrack::AnalogsMapper::setAnalogsTracker ( std::shared_ptr< AnalogsTracker > bt )

Sets the analogs tracker to re-map.

XML-attribute: analogsTracker

◆ setHorizontalAnalog()

void gramods::gmTrack::AnalogsMapper::setHorizontalAnalog ( int idx )

Sets which analog to map to horizontal analog, as an index starting at zero.

XML-attribute: horizontalAnalog

◆ setTriggerAnalog()

void gramods::gmTrack::AnalogsMapper::setTriggerAnalog ( int idx )

Sets which analog to map to trigger analog, as an index starting at zero.

XML-attribute: triggerAnalog

◆ setVerticalAnalog()

void gramods::gmTrack::AnalogsMapper::setVerticalAnalog ( int idx )

Sets which analog to map to vertical analog, as an index starting at zero.

XML-attribute: verticalAnalog

◆ traverse()

void gramods::gmTrack::AnalogsMapper::traverse ( Visitor * visitor )

overridevirtual

Propagates the specified visitor.

See also: Object::Visitor

Reimplemented from gramods::gmCore::Object.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmTrack/include/gmTrack/AnalogsMapper.hh
/home/karlu/private/program/gramods/modules/gmTrack/src/AnalogsMapper.cpp
