gramods::gmGraphics::UvcTexture Class Reference

The UvcTexture connects to a USB video class device and populates its texture data with RGB streamed from that device. More...

#include <UvcTexture.hh>

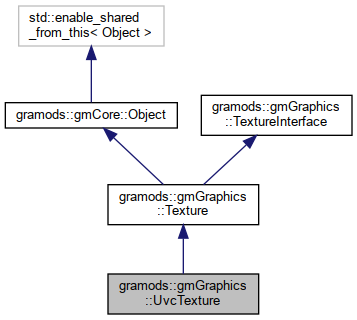

Inheritance diagram for gramods::gmGraphics::UvcTexture:

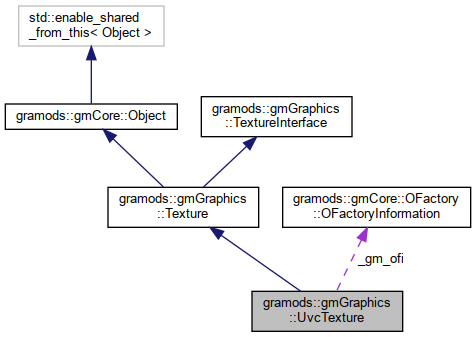

Collaboration diagram for gramods::gmGraphics::UvcTexture:

Classes
struct	Impl

Public Member Functions
void	initialize () override
	Called to initialize the Object. More...
GLuint	updateTexture (size_t frame_number, Eye eye) override
	Updates the texture and returns the ID of the associated GL texture object. More...
void	setVendor (int v)
	Set the vendor ID of the UVC device to stream from. More...
void	setProduct (int p)
	Set the product ID of the UVC device to stream from. More...
void	setSerial (std::string s)
	Set the serial ID of the UVC device to stream from. More...
void	setResolution (gmCore::size2 res)
	Set the resolution to attempt to negotiate with the UVC device. More...
void	setFramerate (int fps)
	Set the framerate to attempt to negotiate with the UVC device. More...
void	setFormat (std::string fmt)
	Set the format to attempt to negotiate with the UVC device. More...
void	setDecode (bool on)
	If this is set to false, the incoming image data will be downloaded to texture as is, if true they will be converted to 8-bit RGB. More...
bool	triggerStill (gmCore::size2 res)
	Trigger a still image capture (UVC STILL_IMAGE_FRAME). More...
Public Member Functions inherited from gramods::gmGraphics::Texture
virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...
Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...
virtual	~Object ()
	Cleaning up internal data. More...
virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...
virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist. More...
bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Detailed Description

The UvcTexture connects to a USB video class device and populates its texture data with RGB streamed from that device.

Member Function Documentation

initialize()

void gramods::gmGraphics::UvcTexture::initialize ( )

overridevirtual

Called to initialize the Object.

This should be called once only!

Sub classes should override this method to make use of set parameter data. They should also always call its base class' implementation as well.

Reimplemented from gramods::gmCore::Object.

setDecode()

void gramods::gmGraphics::UvcTexture::setDecode

(

bool

on

)

If this is set to false, the incoming image data will be downloaded to texture as is, if true they will be converted to 8-bit RGB.

Default is true.

Only YUYV and UYVY formats can be uploaded as texture. All other formats need to be converted to RGB. The YUV data are encoded into a 4-channel texture (RGBA8) and it is up to the client code using this texture to decode each four channel texel into two three channel RGB pixels.

XML-attribute: decode

setFormat()

void gramods::gmGraphics::UvcTexture::setFormat

(

std::string

fmt

)

Set the format to attempt to negotiate with the UVC device.

Values recognized by UVC, but not necessarily supported by all devices, are any, uncompressed, compressed, yuyv, uyvy, rgb, bgr, mjpeg, gray8, gray16, by8, ba81, sgrbg8, sgbrg8, srggb8, sbggr8. Default is any.

XML-attribute: format

setFramerate()

void gramods::gmGraphics::UvcTexture::setFramerate

(

int

fps

)

Set the framerate to attempt to negotiate with the UVC device.

XML-attribute: framerate

setProduct()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_UvcTexture_param_product &UvcTexture::_gm_ofi(& gramods::gmGraphics::UvcTexture::setProduct ( int  p )

inline

Set the product ID of the UVC device to stream from.

As XML attribute, use the 0x prefix to enter the value in hexadecimal format.

XML-attribute: product

setResolution()

void gramods::gmGraphics::UvcTexture::setResolution

(

gmCore::size2

res

)

Set the resolution to attempt to negotiate with the UVC device.

XML-attribute: resolution

setSerial()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_UvcTexture_param_serial &UvcTexture::_gm_ofi(& gramods::gmGraphics::UvcTexture::setSerial ( std::string  s )

inline

Set the serial ID of the UVC device to stream from.

XML-attribute: serial

setVendor()

gramods::gmCore::OFactory::ParamSetterInsert gm_ofi_UvcTexture_param_vendor &UvcTexture::_gm_ofi(& gramods::gmGraphics::UvcTexture::setVendor ( int  v )

inline

Set the vendor ID of the UVC device to stream from.

As XML attribute, use the 0x prefix to enter the value in hexadecimal format.

XML-attribute: vendor

triggerStill()

bool gramods::gmGraphics::UvcTexture::triggerStill

(

gmCore::size2

res

)

Trigger a still image capture (UVC STILL_IMAGE_FRAME).

Returns false iff still image capture could not be triggered.

updateTexture()

GLuint gramods::gmGraphics::UvcTexture::updateTexture ( size_t  frame_number, Eye  eye  )

overridevirtual

Updates the texture and returns the ID of the associated GL texture object.

Must be called with GL context. Observe also that this method may perform off-screen rendering.

Parameters

frame_number	The current frame being rendered. This number should increment by one for each frame, however it may wrap around and start over at zero.
eye	Eye for which the texture is requested. An implementation may use different textures for different eyes or may reuse the same texture for all eyes.

Returns

OpenGL texture ID of the updated texture

Implements gramods::gmGraphics::TextureInterface.

---

The documentation for this class was generated from the following files:

• /home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/UvcTexture.hh
• /home/karlu/private/program/gramods/modules/gmGraphics/src/UvcTexture.cpp
