gramods::gmGraphics::TransitionCoordinatesMapper Class Reference

Coordinates mapper that provides a transition between two other coordinates mappers. More...

#include <TransitionCoordinatesMapper.hh>

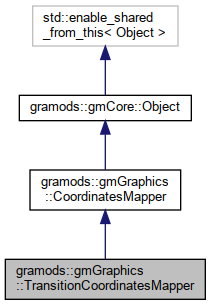

Inheritance diagram for gramods::gmGraphics::TransitionCoordinatesMapper:

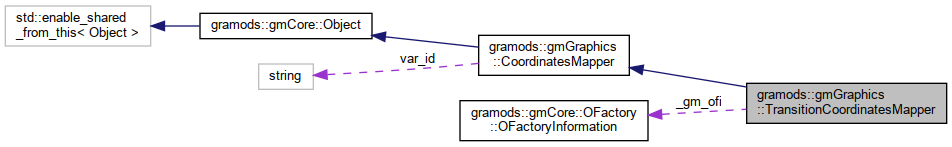

Collaboration diagram for gramods::gmGraphics::TransitionCoordinatesMapper:

Classes
struct	Impl

Public Member Functions
std::string	getCommonCode () override
std::string	getTo2DCode () override
std::string	getTo3DCode () override
void	setCommonUniforms (GLuint program) override
void	setTimeRange (gmCore::float2 t)
	Set the start and end time at which the transition should be made. More...
void	setFrameRange (gmCore::size2 f)
	Set the start and end frame at which the transition should be made. More...
void	setRatio (float n)
	Set a static ratio of interpolation between the two mappers. More...
void	addCoordinatesMapper (std::shared_ptr< CoordinatesMapper > m)
	Adds a coordinates mapper that should be used to map the 3D surrounding into the 2D view. More...
void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...
Public Member Functions inherited from gramods::gmGraphics::CoordinatesMapper
virtual void	setTo2DUniforms (GLuint program)
	Called by the code that is using this CoordinatesMapper object, to let it set the uniforms used by the to-2D code. More...
virtual void	setTo3DUniforms (GLuint program)
	Called by the code that is using this CoordinatesMapper object, to let it set the uniforms used by the to-3D code. More...
virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...
Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...
virtual	~Object ()
	Cleaning up internal data. More...
virtual void	initialize ()
	Called to initialize the Object. More...
virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...
bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::CoordinatesMapper
const std::string	withVarId (std::string) const
Protected Attributes inherited from gramods::gmGraphics::CoordinatesMapper
const std::string	var_id

Detailed Description

Coordinates mapper that provides a transition between two other coordinates mappers.

Member Function Documentation

addCoordinatesMapper()

void gramods::gmGraphics::TransitionCoordinatesMapper::addCoordinatesMapper

(

std::shared_ptr< CoordinatesMapper >

m

)

Adds a coordinates mapper that should be used to map the 3D surrounding into the 2D view.

Two are needed for transition.

getCommonCode()

std::string gramods::gmGraphics::TransitionCoordinatesMapper::getCommonCode ( )

overridevirtual

See also

CoordinatesMapper

Reimplemented from gramods::gmGraphics::CoordinatesMapper.

getTo2DCode()

std::string gramods::gmGraphics::TransitionCoordinatesMapper::getTo2DCode ( )

overridevirtual

See also

CoordinatesMapper

Reimplemented from gramods::gmGraphics::CoordinatesMapper.

getTo3DCode()

std::string gramods::gmGraphics::TransitionCoordinatesMapper::getTo3DCode ( )

overridevirtual

See also

CoordinatesMapper

Reimplemented from gramods::gmGraphics::CoordinatesMapper.

setCommonUniforms()

void gramods::gmGraphics::TransitionCoordinatesMapper::setCommonUniforms ( GLuint  program )

overridevirtual

See also

CoordinatesMapper

Reimplemented from gramods::gmGraphics::CoordinatesMapper.

setFrameRange()

void gramods::gmGraphics::TransitionCoordinatesMapper::setFrameRange

(

gmCore::size2

f

)

Set the start and end frame at which the transition should be made.

The first mapper is used up until and including the start frame and the second is at and after the end frame.

XML-attribute: frameRange

setRatio()

void gramods::gmGraphics::TransitionCoordinatesMapper::setRatio

(

float

n

)

Set a static ratio of interpolation between the two mappers.

Default is 0.5.

XML-attribute: ratio

setTimeRange()

void gramods::gmGraphics::TransitionCoordinatesMapper::setTimeRange

(

gmCore::float2

t

)

Set the start and end time at which the transition should be made.

The first mapper is used up until and including the start time and the second is used at and after the end time.

XML-attribute: timeRange

traverse()

void gramods::gmGraphics::TransitionCoordinatesMapper::traverse ( Visitor *  visitor )

overridevirtual

Propagates the specified visitor.

See also

Object::Visitor

Reimplemented from gramods::gmCore::Object.

---

The documentation for this class was generated from the following files:

• /home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/TransitionCoordinatesMapper.hh
• /home/karlu/private/program/gramods/modules/gmGraphics/src/TransitionCoordinatesMapper.cpp
