SphereGeometry contains information for projection of graphics on a sphere. More...

#include <SphereGeometry.hh>

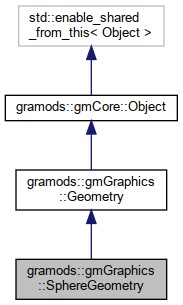

Inheritance diagram for gramods::gmGraphics::SphereGeometry:

[legend]

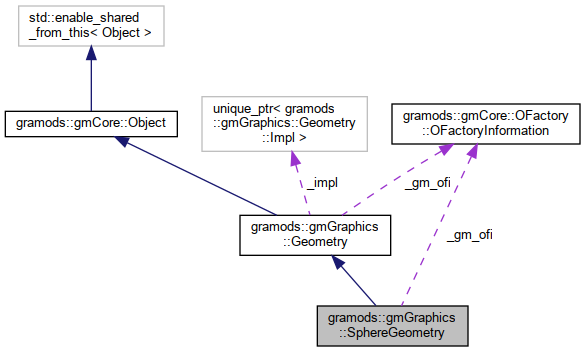

Collaboration diagram for gramods::gmGraphics::SphereGeometry:

[legend]

Classes
struct	Impl

Public Member Functions
void	setPosition (Eigen::Vector3f p)
	Set the position of the sphere origin, its center. More...

void	setRadius (float)
	Set the radius of the sphere. More...

void	setFrustumSizeRatio (float)
	Until the render frustum estimation has been implemented to correctly cover the full view frustum, this frustum size modulation parameter can be used to enlarge the render frustum. More...

bool	getCameraFromPosition (Camera vfrustum, Eigen::Vector3f position, Camera &rfrustum) override
	Calculates and returns a frustum, with optical center at the specified position, that contains the intersection between the provided frustum and the geometrical shape. More...

std::string	getIntersectionCode () override
	Returns shader code that implements the necessary functions for the specific Geometry. More...

void	setMapperUniforms (GLuint program) override
	Called by the code that is using this geometry object, to let the it set the uniforms used by the mapper code. More...

Public Member Functions inherited from gramods::gmGraphics::Geometry
	Geometry (Impl *_impl=nullptr)

void	setInside (bool on)
	Set true if the projection should be calculated for the inside of the geometry, and not the outside. More...

virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::Geometry
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Attributes inherited from gramods::gmGraphics::Geometry
std::unique_ptr< Impl >	_impl

Detailed Description

SphereGeometry contains information for projection of graphics on a sphere.

This can be used for view correction of rendering in dome theatres.

Member Function Documentation

◆ getCameraFromPosition()

bool gramods::gmGraphics::SphereGeometry::getCameraFromPosition	(	Camera	vfrustum,
		Eigen::Vector3f	position,
		Camera &	rfrustum
	)

overridevirtual

Calculates and returns a frustum, with optical center at the specified position, that contains the intersection between the provided frustum and the geometrical shape.

Parameters

[in]	vfrustum	The view frustum, typically the frustum of a projector that projects onto a geometrical surface.
[in]	position	The rendering position, that will be the position of the returned render frustum.
[out]	rfrustum	The render frustum, a frustum that will provide a rendering of the scene, from the provided position, onto the geometry where this geometry is seen by the vfrustum frustum.

Returns: True if a camera could be specified and false if there is no valid camera that fulfills the requirements.

Reimplemented from gramods::gmGraphics::Geometry.

◆ getIntersectionCode()

std::string gramods::gmGraphics::SphereGeometry::getIntersectionCode ( )

overridevirtual

Returns shader code that implements the necessary functions for the specific Geometry.

The code implements

vec3 getIntersection(vec3 pos, vec3 dir) - returns the intersection between the line defined by the specified position and direction vector and the SphereGeometry. Return (0,0) if there is no intersection.

Reimplemented from gramods::gmGraphics::Geometry.

◆ setFrustumSizeRatio()

void gramods::gmGraphics::SphereGeometry::setFrustumSizeRatio ( float r )

Until the render frustum estimation has been implemented to correctly cover the full view frustum, this frustum size modulation parameter can be used to enlarge the render frustum.

Use this if you see D-shaped black regions at the edge of the view. Default is 1.0.

XML-attribute: frustumSizeRatio

◆ setMapperUniforms()

void gramods::gmGraphics::SphereGeometry::setMapperUniforms ( GLuint program )

overridevirtual

Called by the code that is using this geometry object, to let the it set the uniforms used by the mapper code.

Reimplemented from gramods::gmGraphics::Geometry.

◆ setPosition()

void gramods::gmGraphics::SphereGeometry::setPosition ( Eigen::Vector3f p )

Set the position of the sphere origin, its center.

XML-attribute: position

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ setRadius()

void gramods::gmGraphics::SphereGeometry::setRadius ( float r )

Set the radius of the sphere.

XML-attribute: radius

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/SphereGeometry.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/SphereGeometry.cpp
