Candy::PaintTexture Class Reference

This texture provides drawing functions to simplify drawing. More...

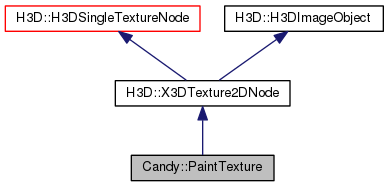

Inheritance diagram for Candy::PaintTexture:

Classes
class	SFImage

Public Member Functions
	PaintTexture (H3D::Inst< H3D::H3DDisplayListObject::DisplayList > _displayList=0, H3D::Inst< H3D::SFNode > _metadata=0, H3D::Inst< H3D::SFBool > _repeatS=0, H3D::Inst< H3D::SFBool > _repeatT=0, H3D::Inst< H3D::SFBool > _scaleToP2=0, H3D::Inst< SFImage > _image=0, H3D::Inst< SFTextureProperties > _textureProperties=0)
void	beginEditing ()
void	endEditing ()
void	drawPoint (int x0, int y0, H3DUtil::RGBA color, int width, int height)
	Draw a point at the specified position with the specified color. More...
void	drawPoint (int x0, int y0, H3DUtil::RGBA color)
	Identical to CANDY::PaintTexture::drawPoint(int x0, int y0, H3DUtil::RGBA color, int width, int height) except that it is slower, since it has to check the image height and width. More...
void	drawLine (float x0, float y0, float x1, float y1, H3DUtil::RGBA color, int width, int height)
	Draw a line between the specified positions with the specified color. More...
void	drawLine (float x0, float y0, float x1, float y1, H3DUtil::RGBA color)
	Identical to CANDY::PaintTexture::drawLine(float x0, float y0, float x1, float y1, H3DUtil::RGBA color, int width, int height ) except that it is slower, since it has to check the image height and width. More...
void	drawCircle (float x, float y, float r, H3DUtil::RGBA color, int width, int height)
	Draw a circle at the specified position with the specified radius and color. More...
void	drawCircle (float x, float y, float r, H3DUtil::RGBA color)
	Identical to CANDY::PaintTexture::drawCircle(float x, float y, float r, H3DUtil::RGBA color, int width, int height ) except that it is slower, since it has to check the image height and width. More...
int	getWidth ()
int	getHeight ()
void	setWidth (int width)
void	setHeight (int height)
void	setResolution (int width, int height)
Public Member Functions inherited from H3D::H3DSingleTextureNode
virtual void	enableTexturing ()=0
virtual void	disableTexturing ()=0

Static Public Attributes
static H3D::H3DNodeDatabase	database

Detailed Description

This texture provides drawing functions to simplify drawing.

Member Function Documentation

void Candy::PaintTexture::drawCircle	(	float	x,
		float	y,
		float	r,
		H3DUtil::RGBA	color,
		int	width,
		int	height
	)

Draw a circle at the specified position with the specified radius and color.

Call beginEditing before and endEditing after. The width and height must specify the correct image height and width as returned by getHeight() and getWidth(), respectively.

void Candy::PaintTexture::drawCircle ( float  x, float  y, float  r, H3DUtil::RGBA  color  )

inline

Identical to CANDY::PaintTexture::drawCircle(float x, float y, float r, H3DUtil::RGBA color, int width, int height ) except that it is slower, since it has to check the image height and width.

void Candy::PaintTexture::drawLine	(	float	x0,
		float	y0,
		float	x1,
		float	y1,
		H3DUtil::RGBA	color,
		int	width,
		int	height
	)

Draw a line between the specified positions with the specified color.

Call beginEditing before and endEditing after. The width and height must specify the correct image height and width as returned by getHeight() and getWidth(), respectively.

void Candy::PaintTexture::drawLine ( float  x0, float  y0, float  x1, float  y1, H3DUtil::RGBA  color  )

inline

Identical to CANDY::PaintTexture::drawLine(float x0, float y0, float x1, float y1, H3DUtil::RGBA color, int width, int height ) except that it is slower, since it has to check the image height and width.

void Candy::PaintTexture::drawPoint	(	int	x0,
		int	y0,
		H3DUtil::RGBA	color,
		int	width,
		int	height
	)

Draw a point at the specified position with the specified color.

Call beginEditing before and endEditing after. The width and height must specify the correct image height and width as returned by getHeight() and getWidth(), respectively.

void Candy::PaintTexture::drawPoint ( int  x0, int  y0, H3DUtil::RGBA  color  )

inline

Identical to CANDY::PaintTexture::drawPoint(int x0, int y0, H3DUtil::RGBA color, int width, int height) except that it is slower, since it has to check the image height and width.
