gramods::gmGraphics::QuadBufferMultiplexer Class Reference

Stereo rendering multiplexer that directs left and right eye rendering to the left and right back buffers, respectively. More...

#include <QuadBufferMultiplexer.hh>

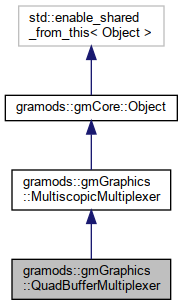

Inheritance diagram for gramods::gmGraphics::QuadBufferMultiplexer:

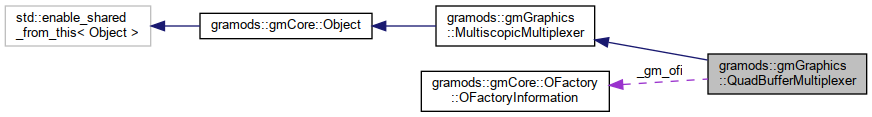

Collaboration diagram for gramods::gmGraphics::QuadBufferMultiplexer:

Classes
struct	Impl

Public Member Functions
size_t	getEyeCount ()
	Returns the number of eyes that should be rendered for the multiplexer. More...
void	prepare () override
	Prepares the multiplexer for rendering to the two eyes. More...
void	setupRendering (size_t eye) override
	Sets up rendering for one eye at a time. More...
void	finalize () override
	Finalizes the multiplexing. More...
Public Member Functions inherited from gramods::gmGraphics::MultiscopicMultiplexer
virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...
Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...
virtual	~Object ()
	Cleaning up internal data. More...
virtual void	initialize ()
	Called to initialize the Object. More...
virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...
virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist. More...
bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Detailed Description

Stereo rendering multiplexer that directs left and right eye rendering to the left and right back buffers, respectively.

This requires support for quad buffer rendering on graphics hardware, driver and current graphics context.

Member Function Documentation

finalize()

void gramods::gmGraphics::QuadBufferMultiplexer::finalize ( )

overridevirtual

Finalizes the multiplexing.

Implements gramods::gmGraphics::MultiscopicMultiplexer.

getEyeCount()

size_t gramods::gmGraphics::QuadBufferMultiplexer::getEyeCount ( )

inlinevirtual

Returns the number of eyes that should be rendered for the multiplexer.

Returns the value two (2).

Implements gramods::gmGraphics::MultiscopicMultiplexer.

prepare()

void gramods::gmGraphics::QuadBufferMultiplexer::prepare ( )

overridevirtual

Prepares the multiplexer for rendering to the two eyes.

Implements gramods::gmGraphics::MultiscopicMultiplexer.

setupRendering()

void gramods::gmGraphics::QuadBufferMultiplexer::setupRendering ( size_t  eye )

overridevirtual

Sets up rendering for one eye at a time.

Implements gramods::gmGraphics::MultiscopicMultiplexer.

---

The documentation for this class was generated from the following files:

• /home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/QuadBufferMultiplexer.hh
• /home/karlu/private/program/gramods/modules/gmGraphics/src/QuadBufferMultiplexer.cpp
