gramods::gmTrack::OpenCvVideoCapture Class Reference

The OpenCvVideoCapture uses OpenCVs VideoCapture to read off video image data. More...

#include <OpenCvVideoCapture.hh>

Inheritance diagram for gramods::gmTrack::OpenCvVideoCapture:

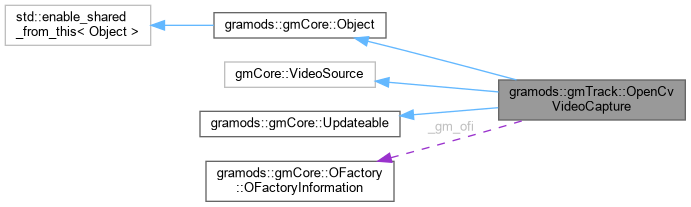

Collaboration diagram for gramods::gmTrack::OpenCvVideoCapture:

Classes
struct	Impl

Public Member Functions
void	setVideoFile (std::filesystem::path file)
	Sets the video file to read from.
void	setCameraId (int id)
	Sets the camera id to capture data from.
void	setCameraWidth (int W)
	Sets the width of the resolution to request from the camera.
void	setCameraHeight (int W)
	Sets the height of the resolution to request from the camera.
void	setCameraFramerate (int R)
	Sets the framerate to request from the camera.
void	setCameraFourCC (std::string cc)
	Specifies the FourCC for the camera stream.
void	setBackend (std::string b)
	Specifies backend to use for reading camera or video stream.
void	update (gmCore::Updateable::clock::time_point, size_t)
	Updates the video capture to read off the next frame.
bool	retrieve (cv::Mat &image) override
	Retrieve the latest read image captured.
std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object.
Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data.
virtual	~Object ()
	Cleaning up internal data.
virtual void	initialize ()
	Called to initialize the Object.
virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument.
virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist.
bool	isInitialized ()
	Returns true if the Object is initialized.
Public Member Functions inherited from gramods::gmCore::Updateable
	Updateable (int priority=0)
	Configures the Updateable properties to the specified priority.
virtual void	update (clock::time_point t, size_t frame)=0
	Called by updateAll to make the object up-to-date.

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Public Types inherited from gramods::gmCore::Updateable
typedef std::chrono::steady_clock	clock
Static Public Member Functions inherited from gramods::gmCore::Updateable
static void	updateAll (clock::time_point t=clock::now(), std::optional< size_t > frame=std::nullopt)
	Updates all currently instanciated updateable objects.

Detailed Description

The OpenCvVideoCapture uses OpenCVs VideoCapture to read off video image data.

This class configures as an Updateable with a priority of

1. Either Updateable::updateAll or update must be called at even intervals. This is done automatically by gm-load.

Member Function Documentation

getDefaultKey()

std::string gramods::gmTrack::OpenCvVideoCapture::getDefaultKey ( )

inlineoverridevirtual

Returns the default key, in Configuration, for the Object.

Reimplemented from gramods::gmCore::Object.

retrieve()

bool gramods::gmTrack::OpenCvVideoCapture::retrieve ( cv::Mat &  image )

override

Retrieve the latest read image captured.

Parameters

[out]


The latest image in the video source.

Returns

True if the image was successfully read.

setBackend()

void gramods::gmTrack::OpenCvVideoCapture::setBackend

(

std::string

b

)

Specifies backend to use for reading camera or video stream.

Default is "ANY" and the following are all valid alternatives, though not all may be supported by the current build of OpenCV:

• ANY
• V4L
• V4L2
• FIREWIRE
• FIREWARE
• IEEE1394
• DC1394
• CMU1394
• DSHOW
• PVAPI
• OPENNI
• OPENNI_ASUS
• ANDROID
• XIAPI
• AVFOUNDATION
• GIGANETIX
• MSMF
• WINRT
• INTELPERC
• REALSENSE
• OPENNI2
• OPENNI2_ASUS
• GPHOTO2
• GSTREAMER
• FFMPEG
• IMAGES
• ARAVIS
• OPENCV_MJPEG
• INTEL_MFX
• XINE

XML-attribute: backend

setCameraFourCC()

void gramods::gmTrack::OpenCvVideoCapture::setCameraFourCC

(

std::string

cc

)

Specifies the FourCC for the camera stream.

If not set the driver default is used. A value supported by many cameras is "MJPG". This string must be four characters long, so add spaces when necessary.

XML-attribute: cameraFourCC

setCameraFramerate()

void gramods::gmTrack::OpenCvVideoCapture::setCameraFramerate

(

int

R

)

Sets the framerate to request from the camera.

If not set the driver default is used.

XML-attribute: cameraFramerate

See also

https://www.fourcc.org/codecs.php

setCameraHeight()

void gramods::gmTrack::OpenCvVideoCapture::setCameraHeight

(

int

W

)

Sets the height of the resolution to request from the camera.

If not set the driver default is used.

XML-attribute: cameraHeight

setCameraId()

void gramods::gmTrack::OpenCvVideoCapture::setCameraId

(

int

id

)

Sets the camera id to capture data from.

XML-attribute: cameraId

setCameraWidth()

void gramods::gmTrack::OpenCvVideoCapture::setCameraWidth

(

int

W

)

Sets the width of the resolution to request from the camera.

If not set the driver default is used.

XML-attribute: cameraWidth

setVideoFile()

void gramods::gmTrack::OpenCvVideoCapture::setVideoFile

(

std::filesystem::path

file

)

Sets the video file to read from.

XML-attribute: videoFile

update()

void gramods::gmTrack::OpenCvVideoCapture::update	(	gmCore::Updateable::clock::time_point	,
		size_t
	)

Updates the video capture to read off the next frame.

---

The documentation for this class was generated from the following files:

• /home/karlu/private/program/gramods/modules/gmTrack/include/gmTrack/OpenCvVideoCapture.hh
• /home/karlu/private/program/gramods/modules/gmTrack/src/OpenCvVideoCapture.cpp
