gramods::gmGraphics::CallbackRenderer Class Reference

A renderer that defers rendering to a callback function. More...

#include <CallbackRenderer.hh>

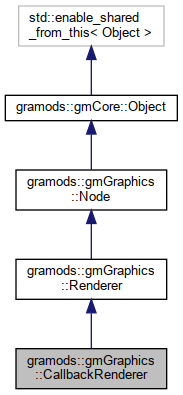

Inheritance diagram for gramods::gmGraphics::CallbackRenderer:

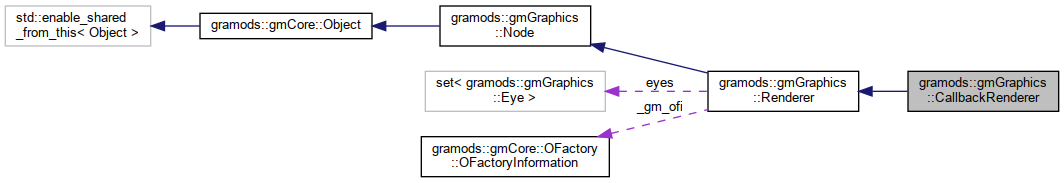

Collaboration diagram for gramods::gmGraphics::CallbackRenderer:

Public Types
typedef std::function< void(void)>	SetupFunction
	The signature of a setup function that prepares a renderer. More...
typedef std::function< void(const Camera &, const Eigen::Affine3f &)>	RenderFunction
	The signature of the rendering function that provides the actual graphics. More...
typedef std::function< void(const Camera &, const Eigen::Affine3f &, float &, float &)>	NearFarFunction
	The signature of an optional function that returns the currently optimal near and far plane distances. More...
Public Types inherited from gramods::gmGraphics::Node
typedef std::vector< std::shared_ptr< Node > >	list

Public Member Functions
void	render (const Camera &camera, const Eigen::Affine3f &Mm) override
	Performs rendering of 3D objects in the scene. More...
void	getNearFar (const Camera &camera, const Eigen::Affine3f &Mm, float &near, float &far) override
	Extracts the currently optimal near and far plane distances. More...
void	setCallback (SetupFunction func)
	Sets the callback that should be called to set up GL for rendering. More...
void	setCallback (RenderFunction func)
	Sets the callback that should be called upon calls to the render method. More...
void	setCallback (NearFarFunction func)
	Sets the callback that should be called to get optimal near and far plane distances. More...
Public Member Functions inherited from gramods::gmGraphics::Renderer
void	addEye (Eye e)
	Add an eye to render to. More...
Public Member Functions inherited from gramods::gmGraphics::Node
virtual std::vector< float >	getIntersections (const IntersectionLine &line)
	Check and return intersections between the provided line and the shape represented by this node. More...
virtual std::string	getDefaultKey () override
	Returns the default key, in Configuration, for the Object. More...
Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...
virtual	~Object ()
	Cleaning up internal data. More...
virtual void	initialize ()
	Called to initialize the Object. More...
virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...
virtual void	traverse (Visitor *visitor)
	Calls the child Object's accept method, if such exist. More...
bool	isInitialized ()
	Returns true if the Object is initialized. More...

Additional Inherited Members
Static Public Attributes inherited from gramods::gmGraphics::Renderer
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi
Protected Attributes inherited from gramods::gmGraphics::Renderer
std::set< Eye >	eyes
	Eyes to render. More...

Detailed Description

A renderer that defers rendering to a callback function.

Typical usage:

auto callback = std::make_shared<gmGraphics::CallbackRenderer>();
callback->setCallback([=](Camera c){ my_render_callback(c); });
window->addRenderer(callback);

Member Typedef Documentation

NearFarFunction

typedef std::function<void( const Camera &, const Eigen::Affine3f &, float &, float &)> gramods::gmGraphics::CallbackRenderer::NearFarFunction

The signature of an optional function that returns the currently optimal near and far plane distances.

This is typically used by a View if there are multiple renderers that need to be rendered with the same near and far planes for correct depth testing.

RenderFunction

typedef std::function<void(const Camera &, const Eigen::Affine3f &)> gramods::gmGraphics::CallbackRenderer::RenderFunction

The signature of the rendering function that provides the actual graphics.

See also

gmGraphics::Renderer::render

SetupFunction

typedef std::function<void(void)> gramods::gmGraphics::CallbackRenderer::SetupFunction

The signature of a setup function that prepares a renderer.

This is called once, the first time the render function is called by its view.

Member Function Documentation

getNearFar()

void gramods::gmGraphics::CallbackRenderer::getNearFar ( const Camera &  camera, const Eigen::Affine3f &  Mm, float &  near, float &  far  )

inlineoverridevirtual

Extracts the currently optimal near and far plane distances.

This is typically used by a View if there are multiple renderers that need to be rendered with the same near and far planes for correct depth testing.

Implements gramods::gmGraphics::Renderer.

render()

void gramods::gmGraphics::CallbackRenderer::render ( const Camera &  camera, const Eigen::Affine3f &  Mm  )

inlineoverridevirtual

Performs rendering of 3D objects in the scene.

Implements gramods::gmGraphics::Renderer.

setCallback() [1/3]

void gramods::gmGraphics::CallbackRenderer::setCallback ( NearFarFunction  func )

inline

Sets the callback that should be called to get optimal near and far plane distances.

setCallback() [2/3]

void gramods::gmGraphics::CallbackRenderer::setCallback ( RenderFunction  func )

inline

Sets the callback that should be called upon calls to the render method.

setCallback() [3/3]

void gramods::gmGraphics::CallbackRenderer::setCallback ( SetupFunction  func )

inline

Sets the callback that should be called to set up GL for rendering.

---

The documentation for this class was generated from the following file:

• /home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/CallbackRenderer.hh
