A renderer that renders an OpenSceneGraph scenegraph. More...
#include <OsgRenderer.hh>

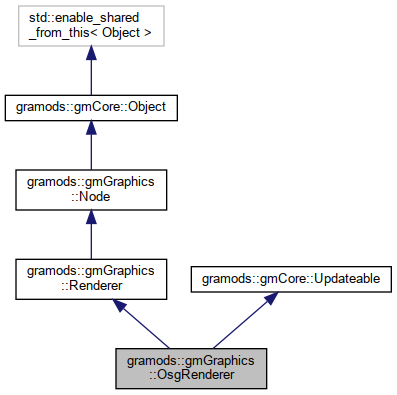

Inheritance diagram for gramods::gmGraphics::OsgRenderer:

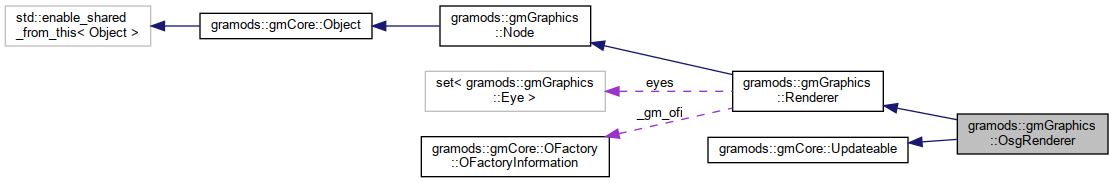

Collaboration diagram for gramods::gmGraphics::OsgRenderer:
Classes | |
| struct | Impl |
Public Member Functions | |
| void | setFrameNumber (unsigned int n) |
| Sets the current frame number. More... | |
| void | render (const Camera &camera, const Eigen::Affine3f &Mm) override |
| Calls the scenegraph root for rendering. More... | |
| void | getNearFar (const Camera &camera, const Eigen::Affine3f &Mm, float &near, float &far) override |
| Extracts the currently optimal near and far plane distances. More... | |
| void | setSceneData (osg::Node *node) |
| Sets the scenegraph. More... | |
| void | update (clock::time_point time, size_t frame) override |
| Called to make the object up-to-date. More... | |
 Public Member Functions inherited from gramods::gmGraphics::Renderer | |
| void | addEye (Eye e) |
| Add an eye to render to. More... | |
| Public Member Functions inherited from gramods::gmGraphics::Node | |
| virtual std::vector< float > | getIntersections (const IntersectionLine &line) |
| Check and return intersections between the provided line and the shape represented by this node. More... | |
| virtual std::string | getDefaultKey () override |
| Returns the default key, in Configuration, for the Object. More... | |
| Public Member Functions inherited from gramods::gmCore::Object | |
| Object () | |
| Initializes internal data. More... | |
| virtual | ~Object () |
| Cleaning up internal data. More... | |
| virtual void | initialize () |
| Called to initialize the Object. More... | |
| virtual void | accept (Visitor *visitor) |
| Calls the visitors apply method with this as argument. More... | |
| virtual void | traverse (Visitor *visitor) |
| Calls the child Object's accept method, if such exist. More... | |
| bool | isInitialized () |
| Returns true if the Object is initialized. More... | |
| Public Member Functions inherited from gramods::gmCore::Updateable | |
| Updateable (int priority=0) | |
| Configures the Updateable properties to the specified priority. More... | |
Additional Inherited Members | |
| Public Types inherited from gramods::gmGraphics::Node | |
| typedef std::vector< std::shared_ptr< Node > > | list |
| Public Types inherited from gramods::gmCore::Updateable | |
| typedef std::chrono::steady_clock | clock |
| Static Public Member Functions inherited from gramods::gmCore::Updateable | |
| static void | updateAll (clock::time_point t=clock::now(), std::optional< size_t > frame=std::nullopt) |
| Updates all currently instanciated updateable objects. More... | |
| Static Public Attributes inherited from gramods::gmGraphics::Renderer | |
| static gramods::gmCore::OFactory::OFactoryInformation | _gm_ofi |
| Protected Attributes inherited from gramods::gmGraphics::Renderer | |
| std::set< Eye > | eyes |
| Eyes to render. More... | |
Detailed Description
A renderer that renders an OpenSceneGraph scenegraph.
Member Function Documentation
◆ getNearFar()
|
overridevirtual |
Extracts the currently optimal near and far plane distances.
Implements gramods::gmGraphics::Renderer.
◆ render()
|
overridevirtual |
Calls the scenegraph root for rendering.
Implements gramods::gmGraphics::Renderer.
◆ setFrameNumber()
| void gramods::gmGraphics::OsgRenderer::setFrameNumber | ( | unsigned int | n | ) |
Sets the current frame number.
This is propagated to the OSG viewer to be used for example in animation updates. This is automatically incremented if not set.
◆ setSceneData()
| void gramods::gmGraphics::OsgRenderer::setSceneData | ( | osg::Node * | node | ) |
Sets the scenegraph.
◆ update()
|
overridevirtual |
Called to make the object up-to-date.
Implements gramods::gmCore::Updateable.
The documentation for this class was generated from the following files:
- /home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/OsgRenderer.hh
- /home/karlu/private/program/gramods/modules/gmGraphics/src/OsgRenderer.cpp
