This view provides skewed frustum projection of the renderers, on a planar projection surface. More...

#include <SpatialPlanarView.hh>

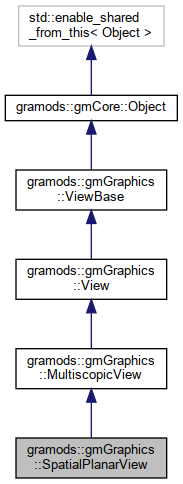

Inheritance diagram for gramods::gmGraphics::SpatialPlanarView:

[legend]

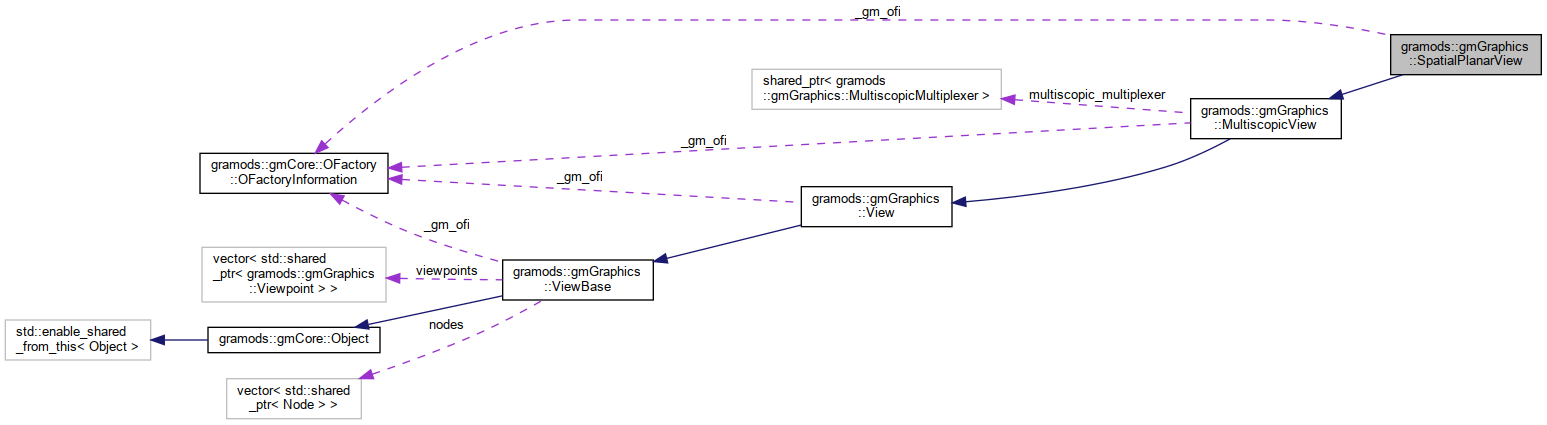

Collaboration diagram for gramods::gmGraphics::SpatialPlanarView:

[legend]

Classes
struct	Impl

Public Member Functions
void	setTopLeftCorner (Eigen::Vector3f tlc)
	Position of the top left corner of the view. More...

void	setBottomRightCorner (Eigen::Vector3f brc)
	Position of bottom right corner of the view. More...

void	setUpDirection (Eigen::Vector3f up)
	Set up direction of the view. More...

void	setPosition (Eigen::Vector3f p)
	Set the position of a virtual frustum. More...

void	setClipAngles (gmCore::angle4 a)
	Set the clip angles of a virtual frustum, as left, right, bottom, top. More...

void	setOrientation (Eigen::Quaternionf q)
	Set the orientation of a virtual frustum. More...

void	setDistance (float d)
	Set the orientation of a virtual frustum. More...

Public Member Functions inherited from gramods::gmGraphics::MultiscopicView
void	renderFullPipeline (ViewSettings settings) override final
	Dispatches specified renders, both method argument and class members. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

void	setMultiscopicMultiplexer (std::shared_ptr< MultiscopicMultiplexer > sm)
	Sets the multiscopic multiplexing to use for rendering. More...

Public Member Functions inherited from gramods::gmGraphics::ViewBase
void	addNode (std::shared_ptr< Node > node)
	Adds a scenegraph to the view. More...

void	setViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Sets the viewpoint to use in the views rendered by this ViewBase. More...

void	addViewpoint (std::shared_ptr< Viewpoint > viewpoint)
	Adds a viewpoint to use in the views rendered by this ViewBase. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::MultiscopicView
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::View
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmGraphics::ViewBase
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Protected Member Functions inherited from gramods::gmGraphics::ViewBase
void	populateViewSettings (ViewSettings &settings)
	Adds the dispatcher's local renderers and viewpoint, if set. More...

Protected Attributes inherited from gramods::gmGraphics::MultiscopicView
std::shared_ptr< MultiscopicMultiplexer >	multiscopic_multiplexer

Protected Attributes inherited from gramods::gmGraphics::ViewBase
Node::list	nodes

std::vector< std::shared_ptr< Viewpoint > >	viewpoints

Detailed Description

This view provides skewed frustum projection of the renderers, on a planar projection surface.

The projection plane can be specified in two ways. The primary way is to explicitly set the top-left and bottom-right corners and up direction. Alternatively the same corner can be calculated from a virtual* frustum, set with position, orientation, clip angles and a distance to the projection plane. Observe, however, that the actual frustum for the rendering is controlled by the Viewpoint, not these parameters.

Member Function Documentation

◆ setBottomRightCorner()

void gramods::gmGraphics::SpatialPlanarView::setBottomRightCorner ( Eigen::Vector3f brc )

Position of bottom right corner of the view.

XML-attribute: bottomRightCorner

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ setClipAngles()

void gramods::gmGraphics::SpatialPlanarView::setClipAngles ( gmCore::angle4 a )

Set the clip angles of a virtual frustum, as left, right, bottom, top.

This will help specifying the projection plane, together with position and orientation, but will not control the final view angle. Left and bottom angles increase left-wise and downwards, respectively, while right and top angles increase right-wise and upwards, respectively.

XML-attribute: clipAngles

See also: operator>>(std::istream &, gmCore::angle &)

◆ setDistance()

void gramods::gmGraphics::SpatialPlanarView::setDistance ( float d )

Set the orientation of a virtual frustum.

This will help specifying the projection plane, but will not control the viewpoint.

XML-attribute: distance

◆ setOrientation()

void gramods::gmGraphics::SpatialPlanarView::setOrientation ( Eigen::Quaternionf q )

Set the orientation of a virtual frustum.

Default is zero rotation. This will help specifying the projection plane, but will not control the viewpoint.

XML-attribute: orientation

See also: gramods::operator>>(std::istream &, Eigen::Quaternionf &)

◆ setPosition()

void gramods::gmGraphics::SpatialPlanarView::setPosition ( Eigen::Vector3f p )

Set the position of a virtual frustum.

Default is the origin. This will help specifying the projection plane, but will not control the viewpoint.

XML-attribute: position

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ setTopLeftCorner()

void gramods::gmGraphics::SpatialPlanarView::setTopLeftCorner ( Eigen::Vector3f tlc )

Position of the top left corner of the view.

XML-attribute: topLeftCorner

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

◆ setUpDirection()

void gramods::gmGraphics::SpatialPlanarView::setUpDirection ( Eigen::Vector3f up )

Set up direction of the view.

XML-attribute: upDirection

See also: gramods::operator>>(std::istream &, Eigen::Vector3f &)

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmGraphics/include/gmGraphics/SpatialPlanarView.hh
/home/karlu/private/program/gramods/modules/gmGraphics/src/SpatialPlanarView.cpp
