The ProjectionTextureGenerator is a utility for generating a projection texture for gmGraphics::TextureProjectedView. More...

#include <ProjectionTextureGenerator.hh>

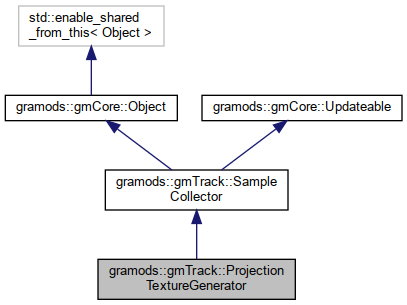

Inheritance diagram for gramods::gmTrack::ProjectionTextureGenerator:

[legend]

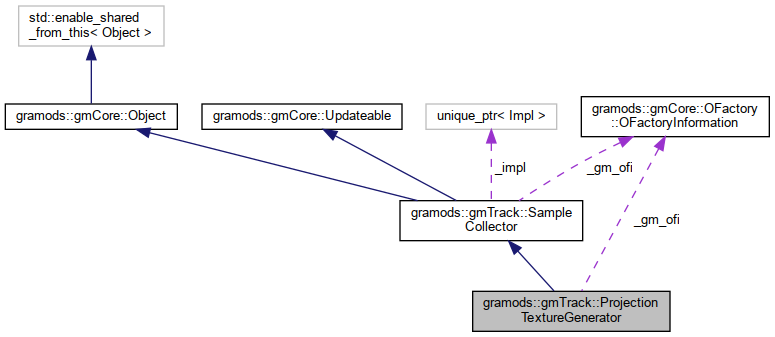

Collaboration diagram for gramods::gmTrack::ProjectionTextureGenerator:

[legend]

Classes
struct	Impl

Public Member Functions
void	setResolution (gmCore::size2 res)
	Set the resolution of the output image. More...

void	addRegion (size_t order=1)
	Creates a new region for the following calls to addBufferPosition, and optionally also sets its polynomial order. More...

void	addBufferPosition (Eigen::Vector2f p)
	Adds a known calibration point, in room coordinates. More...

void	addHullIndex (size_t idx)
	Adds a point, referenced by index, from the buffer position list to the list of hull points for the current region. More...

void	addHullPosition (Eigen::Vector2f p)
	Adds a point to the list of hull points for the current region. More...

void	setFile (std::filesystem::path file)
	Sets the file path to save the view to. More...

void	saveImage ()
	Save the final image to the specified file. More...

Eigen::Vector3f	getOffset ()
	Returns the offset needed to convert the image pixel values in the last generated image to their respective 3D position. More...

Eigen::Vector3f	getScale ()
	Returns the scale needed to convert the image pixel values in the last generated image to their respective 3D position. More...

Public Member Functions inherited from gramods::gmTrack::SampleCollector
	SampleCollector (Impl *impl=nullptr)

void	update (clock::time_point time, size_t frame)
	Updates the internal states. More...

void	setController (std::shared_ptr< Controller > controller)
	Sets the controller to use for reading tracker samples. More...

void	addTrackerPosition (Eigen::Vector3f p)
	Adds a tracker position. More...

void	addTrackerOrientation (Eigen::Quaternionf o)
	Adds a tracker orientation. More...

void	setSamplesPerSecond (float n)
	Sets the frequency at which samples are collected when the controller button is pressed. More...

void	setWarningThreshold (float d)
	Sets the data offset required to trigger a warning. More...

void	setInlierThreshold (float r)
	Set the maximum positional distance from the average allowed for a sample to be included in the average. More...

void	setOrientationWarningThreshold (float d)
	Sets the data offset required to trigger a warning. More...

void	setOrientationInlierThreshold (float r)
	Set the maximum orientational distance (in radians) from the average allowed for a sample to be included in the average. More...

const std::vector< Eigen::Vector3f > &	getTrackerPositions () const
	Returns the current list of tracker positions. More...

const std::vector< Eigen::Quaternionf > &	getTrackerOrientations () const
	Returns the current list of tracker orientations. More...

void	traverse (Visitor *visitor) override
	Propagates the specified visitor. More...

Public Member Functions inherited from gramods::gmCore::Object
	Object ()
	Initializes internal data. More...

virtual	~Object ()
	Cleaning up internal data. More...

virtual void	initialize ()
	Called to initialize the Object. More...

virtual void	accept (Visitor *visitor)
	Calls the visitors apply method with this as argument. More...

virtual std::string	getDefaultKey ()
	Returns the default key for the Object when automatically instantiated in a Configuration, i.e. More...

bool	isInitialized ()
	Returns true if the Object is initialized. More...

Public Member Functions inherited from gramods::gmCore::Updateable
	Updateable (int priority=0)
	Configures the Updateable properties to the specified priority. More...

Static Public Attributes
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Static Public Attributes inherited from gramods::gmTrack::SampleCollector
static gramods::gmCore::OFactory::OFactoryInformation	_gm_ofi

Additional Inherited Members
Public Types inherited from gramods::gmCore::Updateable
typedef std::chrono::steady_clock	clock

Static Public Member Functions inherited from gramods::gmTrack::SampleCollector
static Eigen::Vector3f	getAverage (std::vector< Eigen::Vector3f > samples, float stddev=nullptr, float maxdev=nullptr, float inlier_dist=-1.f, size_t *inlier_count=nullptr)
	Calculates and returns the average point of a set of samples. More...

static Eigen::Quaternionf	getAverage (std::vector< Eigen::Quaternionf > samples, float stddev=nullptr, float maxdev=nullptr, float inlier_dist=-1.f, size_t *inlier_count=nullptr)
	Calculates and returns the average point of a set of samples. More...

Static Public Member Functions inherited from gramods::gmCore::Updateable
static void	updateAll (clock::time_point t=clock::now(), std::optional< size_t > frame=std::nullopt)
	Updates all currently instanciated updateable objects. More...

Protected Attributes inherited from gramods::gmTrack::SampleCollector
std::unique_ptr< Impl >	_impl

Detailed Description

The ProjectionTextureGenerator is a utility for generating a projection texture for gmGraphics::TextureProjectedView.

The utility is used by marking, with the tracking device, the position of known, pre-specified positions in the room or display system.

Member Function Documentation

◆ addBufferPosition()

void gramods::gmTrack::ProjectionTextureGenerator::addBufferPosition ( Eigen::Vector2f p )

Adds a known calibration point, in room coordinates.

If positions are added without first specifying polynomial order (see addRegion), then order 1 will be used.

XML-attribute: bufferPosition

◆ addHullIndex()

void gramods::gmTrack::ProjectionTextureGenerator::addHullIndex ( size_t idx )

Adds a point, referenced by index, from the buffer position list to the list of hull points for the current region.

A list of hull points that enclose the region is necessary when more than one region is defined. This starts at zero for each region.

XML-attribute: hullPoint

◆ addHullPosition()

void gramods::gmTrack::ProjectionTextureGenerator::addHullPosition ( Eigen::Vector2f p )

Adds a point to the list of hull points for the current region.

A list of hull points that enclose the region is necessary when more than one region is defined.

XML-attribute: hullPoint

◆ addRegion()

void gramods::gmTrack::ProjectionTextureGenerator::addRegion ( size_t order = 1 )

Creates a new region for the following calls to addBufferPosition, and optionally also sets its polynomial order.

Use the regions to separate between geometrically smooth projection areas with discontinuities in between. Typically projection surfaces are flat (order = 1) or spherical/cylindrical (order = 2). If positions are added without specifying polynomial order, then order 1 will be used.

Parameters

order The polynomial order of the region.

XML-attribute: region

◆ getOffset()

Eigen::Vector3f gramods::gmTrack::ProjectionTextureGenerator::getOffset ( )

Returns the offset needed to convert the image pixel values in the last generated image to their respective 3D position.

◆ getScale()

Eigen::Vector3f gramods::gmTrack::ProjectionTextureGenerator::getScale ( )

Returns the scale needed to convert the image pixel values in the last generated image to their respective 3D position.

◆ saveImage()

void gramods::gmTrack::ProjectionTextureGenerator::saveImage ( )

Save the final image to the specified file.

Since the RGB values of the image will be in the range 0-1, a scale and offset for these values will also be computed.

◆ setFile()

void gramods::gmTrack::ProjectionTextureGenerator::setFile ( std::filesystem::path file )

Sets the file path to save the view to.

This generator will save the image in TIFF format (32 bit float RGB encoding XYZ) so if the specified path does not include a .tif suffix then one will be added.

XML-attribute: file

◆ setResolution()

void gramods::gmTrack::ProjectionTextureGenerator::setResolution ( gmCore::size2 res )

Set the resolution of the output image.

The documentation for this class was generated from the following files:

/home/karlu/private/program/gramods/modules/gmTrack/include/gmTrack/ProjectionTextureGenerator.hh
/home/karlu/private/program/gramods/modules/gmTrack/src/ProjectionTextureGenerator.cpp
